Pine - 10kwh 10kwh 15kwh 20 Kwh Stackable Wall Mounted Lifepo4 Batteries For Household Energy Storage 10Kwh powerwall

Manufacturing 10kwh 10kwh 15kwh 20 Kwh Stackable Wall Mounted Lifepo4 Batteries For Household Energy Storage requires flexible craftsmanship and high-end technologies.The product is suitable for a wide range of industries like Home Energy Storage.
SEND INQUIRY NOW
Nominal Voltage:
51.2V
Nominal Capacity:
50Ah
400AH
300AH
500Ah
Customization:
Customized logo (Min. Order: 50 sets) , Customized packaging (Min. Order: 100 sets) , Graphic customization (Min. Order: 200 sets)
shipping:
Air freight
SEND INQUIRY NOW
  • Products Details

As one of the most popular products, 10kwh 10kwh 15kwh 20 Kwh Stackable Wall Mounted Lifepo4 Batteries For Household Energy Storage wins increasing popularity. Technology is usually adopted for the design and manufacturing of the product.With regard to its serviceability and practicality,10kwh 10kwh 15kwh 20 Kwh Stackable Wall Mounted Lifepo4 Batteries For Household Energy Storage can be commonly seen in the field(s) of Home Energy Storage. We have been in the trade for over many years and are a well established business with a wealth of experience and expertise.

Battery TypeLiFePO4Model NumberPN-ST1000
Brand NamePinePlace of OriginChina
Product name5kwh powerwall batteryBattery typeLifePo4
ApllicationUPS/Energy storage, Home Appliances, Solar Energy Storage SystemCycle life6000 Cycles
Case MaterialSPCCFeaturesdeep cycle
Capacity300AhKeywords10Kwh powerwall battery
battery typelithium ion batteryShipping ClassificationUN3480,CLASS9, MSDS

Products Description

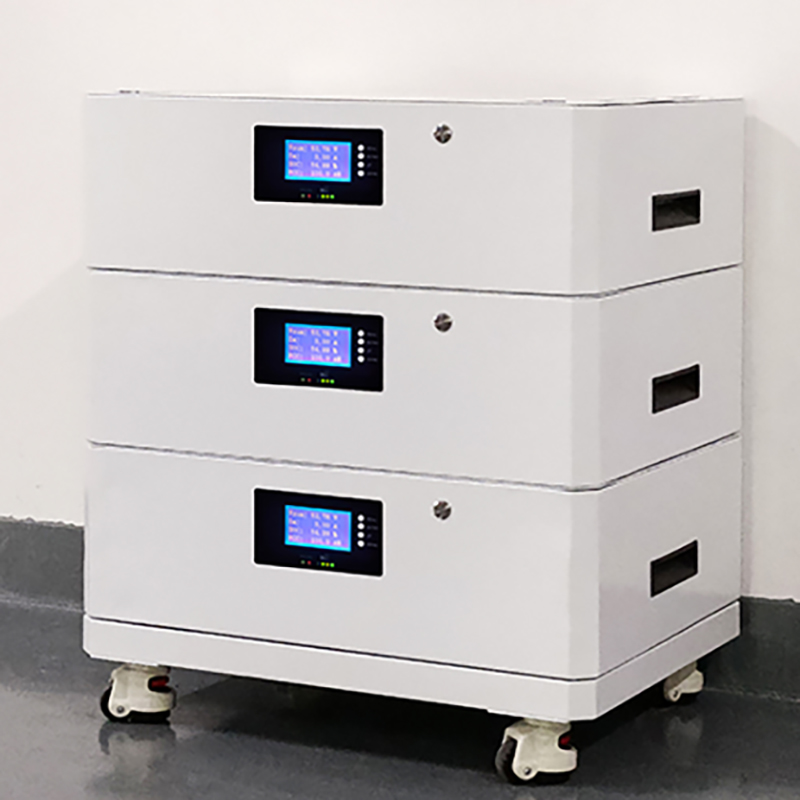

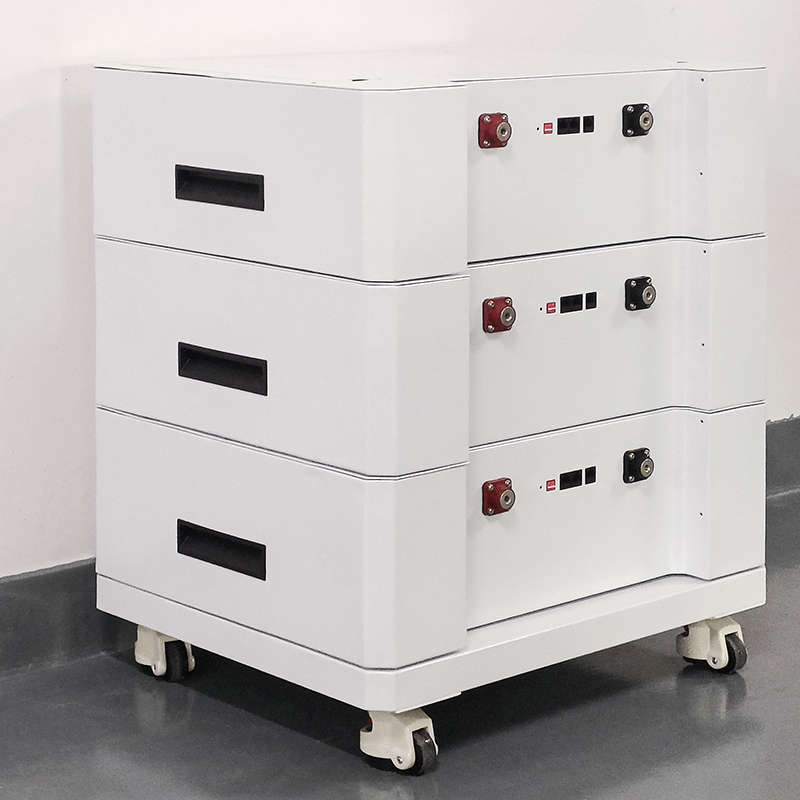

Stackable/ stack'd home battery storage 10Kwh, 15kWh, 20kWh , single module 51.2V 300Ah

Our stackable series offers an ease-of-install, aesthetics, and performance that is unmatched in residential batteries. Each stack is especially suitable for applications of high power, limited installation space, and restricted load-bearing and long cycle life. The 51.2V 300Ah 15KWh module battery series has a specially designed built-in BMS battery management system, which can manage and monitor cell's information including voltage, current and temperature. What's more, the BMS can help extend the cycle life by balancing cells during charging and discharging.

Features:
* Automotive safety structure design, more safe;
* suitable for home andcommercial use;
* CANBUS communication, active upload battery data to the inverter, more secure;

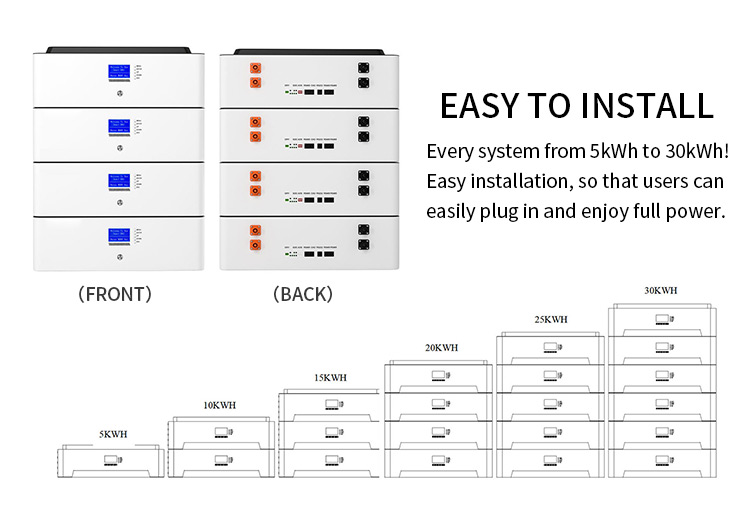

* Flexible configuration, multiple battery modules can be stacked for expanding output and capacity.

Application:

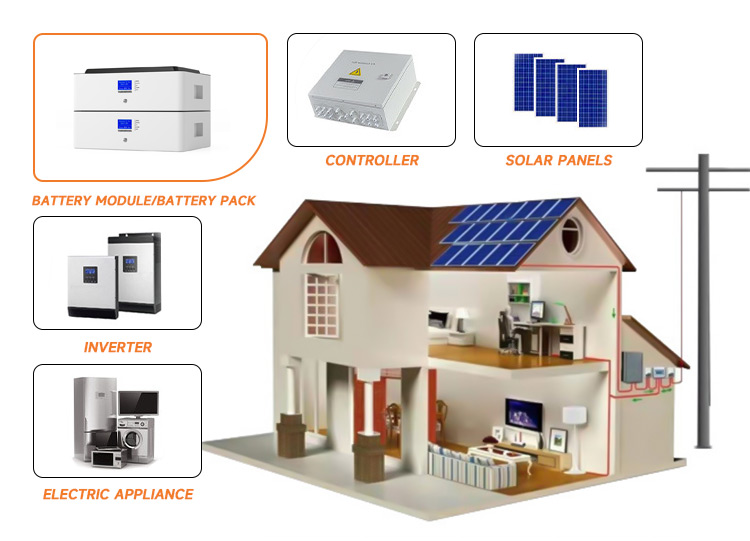

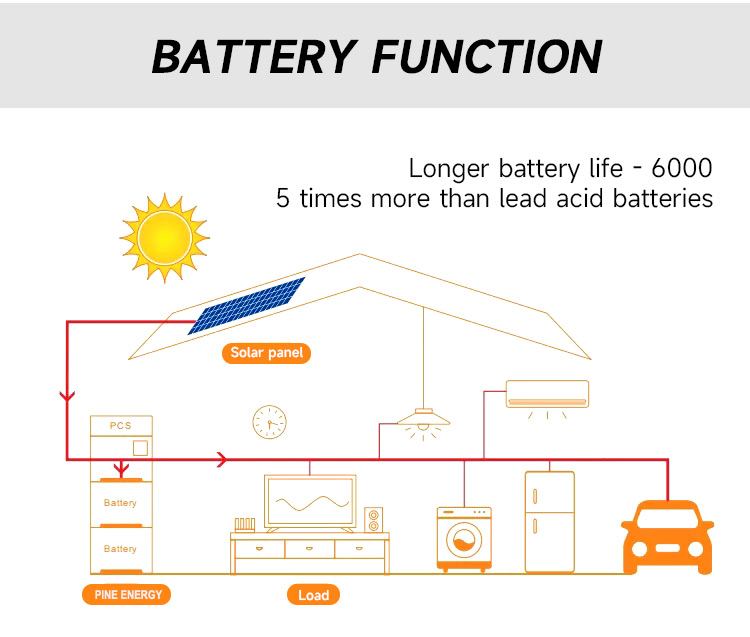

* Energy storage solar/ Wind energy storage/ On off-grid energy storage/ Commercial and residential back-up system/ UPS
* Telecom base/ CATV system/ Computer server center/ Medical instrument/ Military equipment

To become a distributor, and get more benefit.
If you're doing solar storage business, or you're willing to set up a energy storage installing store, or want to have a try of
our battery pack, please contact us. Now we're recruiting agents from global.
Voltage
Model NO.
MAX charging current
Max discharge current
communication
Size (mm)
Weight



Stackable
51.2V 300Ah
300Ah
300Ah
RS485/CAN
565*460*540
142KGS
51.2V 400Ah
400Ah
400Ah
RS485/CAN
565*460*720
186KGS
51.2V 500Ah
500Ah
500Ah
RS485/CAN
565*460*900
232KGS
240V 50Ah
50Ah
50Ah
RS485/CAN
460*330*740
130KGS
384V 50Ah
50Ah
50Ah
RS485/CAN
460*330*880
220KGS


   High Voltage
192V 50Ah
50Ah
50Ah
RS485/CAN
460*330*480
100KGS
240V 50Ah
50Ah
50Ah
RS485/CAN
460*330*640
170KGS
384V 50Ah
50Ah
50Ah
RS485/CAN
460*330*780
280KGS
384V 100Ah
100Ah
100Ah
RS485/CAN
500*450*1450     600*600*1600
450KGS        500KGS
480V 100Ah
100Ah
100Ah
12RS485/CAN
1000*450*1450 1200*600*1600
900KGS        1000KGS

BMS function introduction（BMS功能介绍）

1）：The BMS is designed for 15/16 series lithium battery.（BMS 为 15/16 串锂离子电池设计）
2）：The BMS have all functions which are :（该 BMS 系统具有以下一些功能）
overcharge detection function（过充电保护功能）
over discharge detection function（过放电保护功能）
over current detection function（过电流保护功能）
short detection function（短路保护功能）
Temperature detection function （温度保护功能）
balance function（均衡功能）
communicate function (通讯功能)
Alarm function (告警功能)
Total capacity function (总容量功能)
Storage history function (存储历史记录功能)
RS485 Parallel Communication
While in RS485 parallel communication, dial-up addresses of battery module are 1,2,3,4……14,15; By this method, we can be allowed to read each data depending on battery module. Any battery other than address 0 can be connected to the host computer; FF polling mode used as consulting mode.
Note: RS485 communication address can not be 0, the address set by the host computer is required to be the same as the battery communication address, do not have duplicate addresses, otherwise communication may be affected.

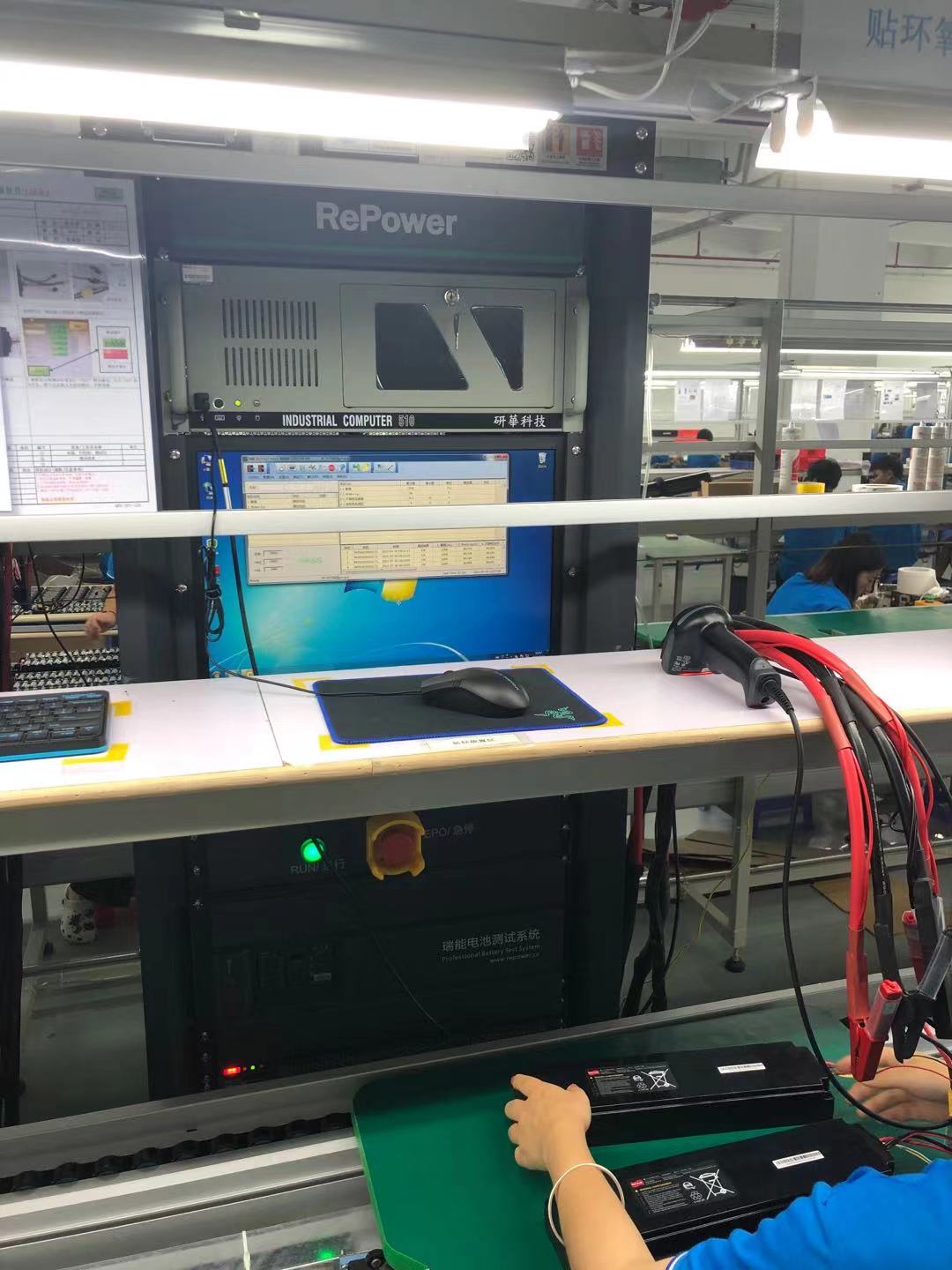

Workshop
Company Profile

Pine Energy(shenzhen)Co.,Ltd.

Pine Energy (shenzhen)Co., Ltd. Is a high-tech enterprise, specialized in R&D and manufacture of Lithium rechargeable battery,LiFePo4 battery and Intelligent flight battery for UAV and agriculture sprayer and so on.
With advanced hi-tech and equipment, Pine engerge has automatic production line and strictly controls raw material inspection,production procedure and finished product inspection. That's why more and more people choose Pine Energy as their partner in the world energy industry. Our Lithium battery products are widely used in UPS backup\ Telecom towers\Solar energy storage system\electric vehicles\AGV\Golf-cart\Street-cleaner\electric-motorcycle\solar street light\and electric tools etc. We own 4 automatic lines, 150 workers, all products are full inspection. OEM/ODM support. Our total production capacity is 1 million batteries per month.

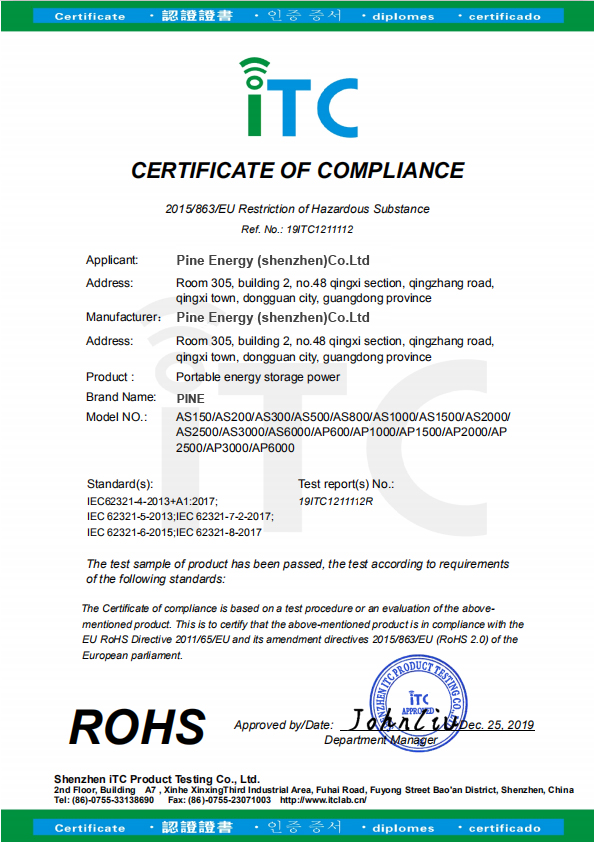

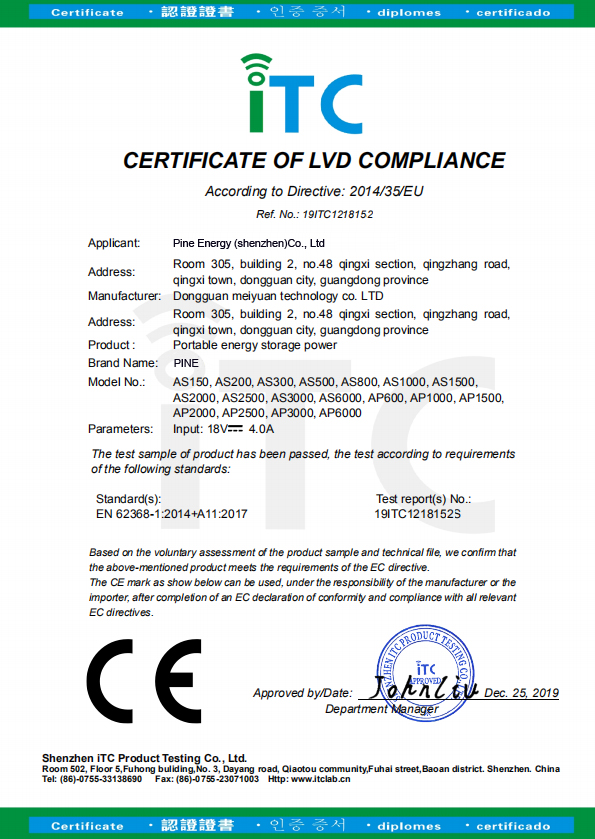

Certifications
FAQ

A): Do you accept small order quantity, how many it is? Answer: Yes, we accept small order quantity. even 1pc B): what's the advantage of Pine energy? Answer: Strong R& D ability and quality assurance C): Do you accept OEM/ODM? Answer: We can and be able to provide OEM / ODM service. D): How long is the warranty period? Answer:Thank you for your question.We offer 3 or 5 years as the warranty period depends on customer demand.
E): How long is the warranty period? Answer:Thank you for your question.We offer 3 or 5 years as the warranty period depends on customer demand.
F): What’s the factory production capacity Answer: 2MWH per day for the production capacity . Welcome to visit our factory and contact us if any further questions
