Pine is a professional solar product supplier, lithium ion battery manufacturer and solar energy system factory in China.
Our engineers and technicians have deep insight into the new technological developments. So far, we have been adopting the upgraded technologies maturel It is popular in the application field(s) of Energy Storage Container.
Several tests prove that our solar inverter, lithium ion battery , DC/AC power inverter , outdoor portable station, Car jump starter is a kind of product combining aesthetics, functions, and practicality. With its characteristics, it is able to be used in the application field(s) of Energy Storage Container and so on. Customers can be worry-free because the tests prove that the product is stable and excellent when being used in those fields. We pride ourselves on our personalized and efficient service. By gathering the elites in the industry together,Pine Energy (Shenzhen)co., Ltd aim to make full use of their wisdom and experience to develop and manufacture competitive products. Our great wish is to become a leading enterprise on a global scale.
| Place of Origin | Guangdong, China | Brand Name | Pine |

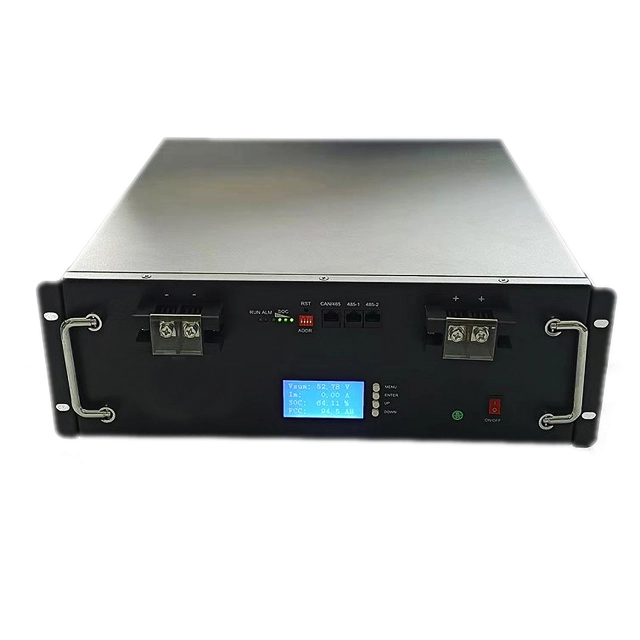

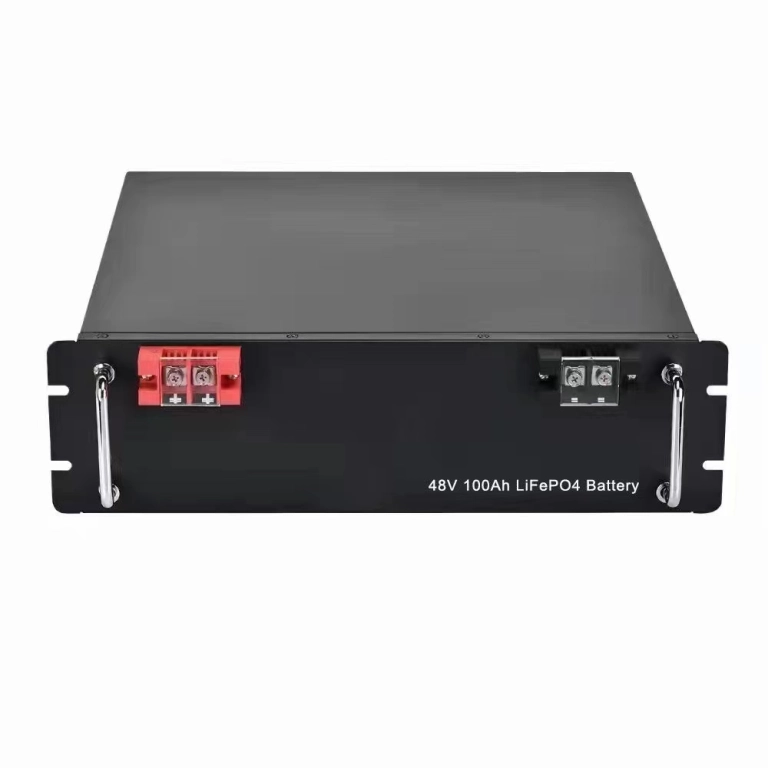

| Model Number | PN3000 | Battery Type | Lifepo4/lithium Battery |
| Product name | Lithium Battery | Chemistry | LifePo4 |

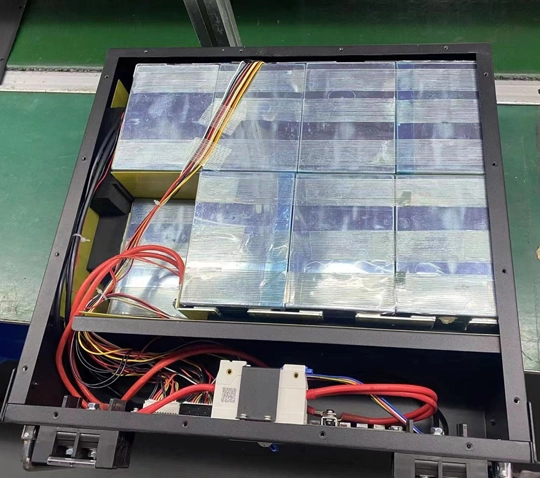

| Configuration | 16S4P | Case Material | ABS |
| Enclosure Protection | IP20 | Short Circuit Protection | 200-400μs |
| Low Temperature Cut-off Charge | 32℉[0℃][Customized] | High Temperature Cut-off Charge | 129.2℉[54℃][Customized] |
| Shipping Classification | UN3480,CLASS9 |
Discharge Specifications | Charge Specifications | ||||
Maximum Continuous Discharge Current | 100A | Recommend Charge Current | 5A-40A | ||
Peak Discharge Current | ≤150A | Maximum Charge Current | 50A | ||
BMS Discharge Current Cut-off | 130A±20A [90±10ms] | Recommed Charge Voltage | 52.5-54V | ||
Recommend Low Voltage Disconnect | 42V | BMS Charge Voltage Cut-off | 54V[3.75±0.1V] | ||
BMS Discharge Voltage Cut-off | 42V[2.8±0.08 vpc] [100±50ms] | Reconnect Voltage | 51.8V[3.45±0.1V] | ||
Reconnect Voltage | 10V[2.5±0.1vpc] | Balancing Voltage | 52.5V[3.5±0.025vpc] | ||
Short Circuit Protection | 200-400μs | Balancing Current | 35±5mA | ||
Temperature Specifications | ||
Discharge Temperature | -4 to 140℉[-20 to 60℃] | |
Charge Temperature | 32 to 113℉[0 to 45℃] | |
Storage Temperature | 23 to 113℉[-5 to 45℃] | |
BMS High Temperature cut-off Discharge | 149℉[65℃][Customized] | |
Reconnect Temperature | 122℉[50℃][Customized] | |
Low Temperature Cut-off Charge | 32℉[0℃][Customized] | |
High Temperature Cut-off Charge | 129.2℉[54℃][Customized] | |
