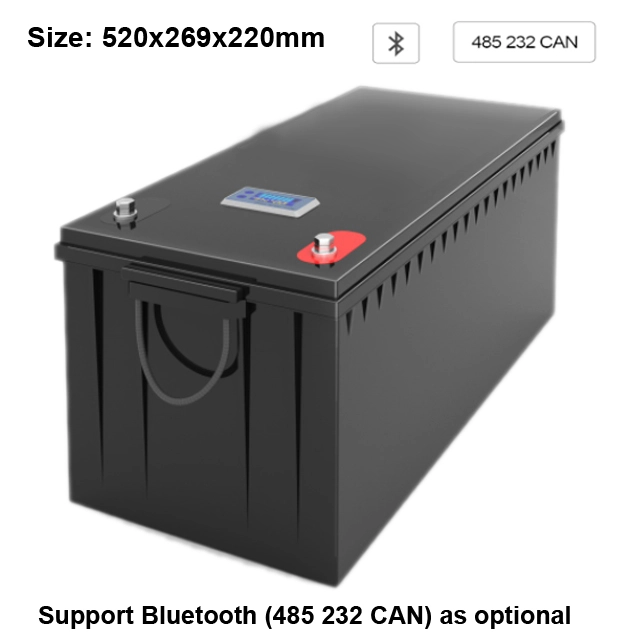

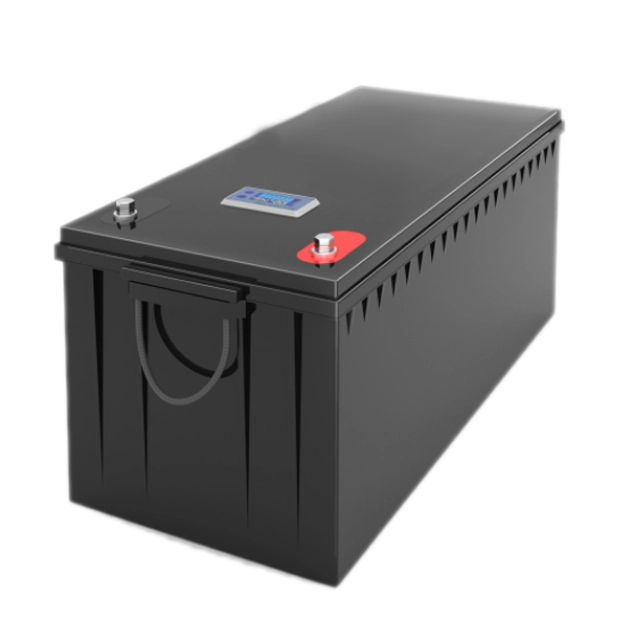

Factory Direct Sale Customize Cheap Deep Cycle Lifepo4 24v 200ah Lithium Battery Pack With Bms compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.
Pine Energy (Shenzhen)co., Ltd has set up a team which is mainly engaged in product development. Thanks to their efforts, we have successfully developed solar inverter, lithium ion battery , DC/AC power inverter , outdoor portable station, Car jump starter and planned to sell it to the overseas markets. Factory Direct Sale Customize Cheap Deep Cycle Lifepo4 24v 200ah Lithium Battery Pack With Bms starting from the user experience and using strong research and development capabilities, it can effectively solving the pain points of the industry. Our Factory Direct Sale Customize Cheap Deep Cycle Lifepo4 24v 200ah Lithium Battery Pack With Bms has been through multiple tests conducted by professional technicians, the purpose of which is to confirm its practical use. When applied in the application area(s) of Lithium Ion Batteries, the solar inverter, lithium ion battery , DC/AC power inverter , outdoor portable station, Car jump starter can be reliable and long-lasting, saving plenty cost for users.
| Battery Type | Lithium Ion, LiFePO4 | Brand Name | Pine |
| Model Number | PN-LP24200D | Place of Origin | China |
| Product name | Lithium Ion Battery | Chemistry | LifePo4 |
| Configuration | 16S1P | Case Material | ABS |
| Enclosure Protection | IP65 | Short Circuit Protection | 200-400μs |
| Low Temperature Cut-off Charge | 32℉[0℃][Customized] | High Temperature Cut-off Charge | 129.2℉[54℃][Customized] |
| Shipping Classification | UN3480,CLASS9 |
Electrical Specification | Mechanical Specifications | ||||
Nominal Voltage: | 12.8V | Dimensions(L*W*H): | 330*172*215mm | ||
Nominal Capacity | 60Ah | Weight: | 10KG | ||
Capacity @50A | 120min | Terminal Type: | M8/M6 | ||
Energy | 2560Wh | Case Material: | ABS | ||
Resistance | ≤30mΩ @ 50% SOC | Enclosure Protection: | IP65 | ||
Efficiency: | 99% | Cell Type: | Prismatic | ||
Self Discharge | ≤3.5% Per Month | Chemistry: | LifePo4 | ||
Maximum Modules in series of Parallel: | 8 | Configuration: | 8S1P | ||
Discharge Specifications | Charge Specifications | ||||
Maximum Continuous Discharge Current | 100A | Recommend Charge Current | 5A-50A | ||
Peak Discharge Current | 260A≤5s | Maximum Charge Current | 100A | ||
BMS Discharge Current Cut-off | 300A±20A [2.2±1ms] | Recommed Charge Voltage | 28.4-29.2V | ||
Recommend Low Voltage Disconnect | 17.6V | BMS Charge Voltage Cut-off | 30V[3.75±0.1V] | ||
BMS Discharge Voltage Cut-off | 17.6V[2.2±0.08 vpc] [100±50ms] | Reconnect Voltage | 29.2V[3.65±0.1V] | ||
Reconnect Voltage | 20V[2.5±0.1vpc] | Balancing Voltage | 28.0V[3.5±0.025vpc] | ||
Short Circuit Protection | 200-400μs | Balancing Current | 35±5mA | ||
Temperature Specifications | ||
Discharge Temperature | -4 to 140℉[-20 to 60℃] | |
Charge Temperature | 32 to 113℉[0 to 45℃] | |
Storage Temperature | -4 to 113℉[-20 to 45℃] | |
BMS High Temperature cut-off Discharge | 149℉[65℃][Customized] | |
Reconnect Temperature | 122℉[50℃][Customized] | |
Low Temperature Cut-off Charge | 32℉[0℃][Customized] | |
High Temperature Cut-off Charge | 129.2℉[54℃][Customized] | |
