  • Product Details

Concerning the industry development,Pine Energy (Shenzhen)co., Ltd has been driven to develop new products to keep us competitive. In recent years, we've updated technologies or higher-efficiency manufacturing of the product. Its application ranges have been expanded to the field(s) of Lithium Ion Batteries. Contact us directly by email or phone call to get more information about our products or services.

Battery TypeLithium Ion, LiFePO4Brand NamePine
Model NumberPN-LP24200DPlace of OriginChina
Product nameLithium Ion BatteryChemistryLifePo4
Configuration8S1PCase MaterialABS
Enclosure ProtectionIP65Short Circuit Protection200-400μs
Low Temperature Cut-off Charge32℉[0℃][Customized]High Temperature Cut-off Charge129.2℉[54℃][Customized]
Shipping ClassificationUN3480,CLASS9


Products Description
Electrical Specification
Mechanical Specifications
Nominal Voltage:
25.6V

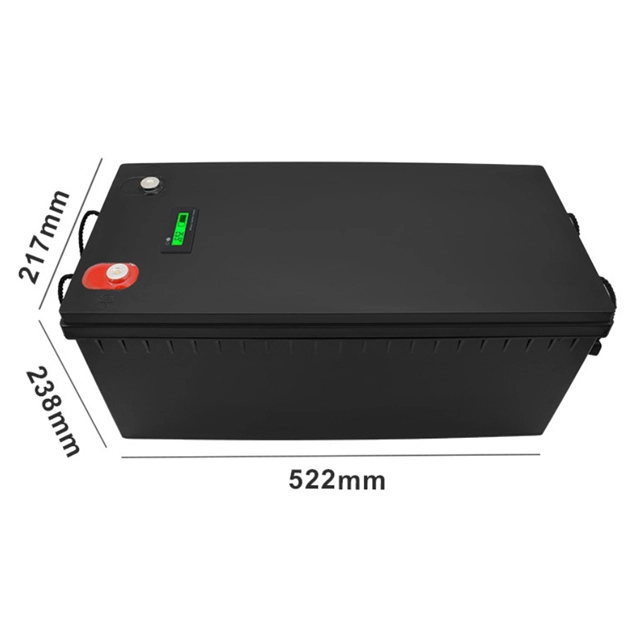

Dimensions(L*W*H):
522*217*238mm


Nominal Capacity
200Ah
Weight:
36KG


Capacity @50A
120min
Terminal Type:
M8/M6


Energy
2560Wh
Case Material:
ABS


Resistance
≤30mΩ @ 50% SOC
Enclosure Protection:
IP65


Efficiency:
99%
Cell Type:
Prismatic


Self Discharge
≤3.5% Per Month
Chemistry:
LifePo4


Maximum Modules in series of Parallel:
8
Configuration:
8S1P


Discharge Specifications
Charge Specifications
Maximum Continuous Discharge Current
100A
Recommend Charge Current
5A-50A


Peak Discharge Current
260A≤5s
Maximum Charge Current
100A


BMS Discharge Current Cut-off
300A±20A [2.2±1ms]
Recommed Charge Voltage
28.4-29.2V


Recommend Low Voltage Disconnect
17.6V
BMS Charge Voltage Cut-off
30V[3.75±0.1V]


BMS Discharge Voltage Cut-off
17.6V[2.2±0.08 vpc] [100±50ms]
Reconnect Voltage
29.2V[3.65±0.1V]


Reconnect Voltage
20V[2.5±0.1vpc]
Balancing Voltage
28.0V[3.5±0.025vpc]


Short Circuit Protection
200-400μs
Balancing Current
35±5mA


Temperature Specifications
Discharge Temperature
-4 to 140℉[-20 to 60℃]

Charge Temperature
32 to 113℉[0 to 45℃]

Storage Temperature
-4 to 113℉[-20 to 45℃]

BMS High Temperature cut-off Discharge
149℉[65℃][Customized]

Reconnect Temperature
122℉[50℃][Customized]

Low Temperature Cut-off Charge
32℉[0℃][Customized]

High Temperature Cut-off Charge
129.2℉[54℃][Customized]

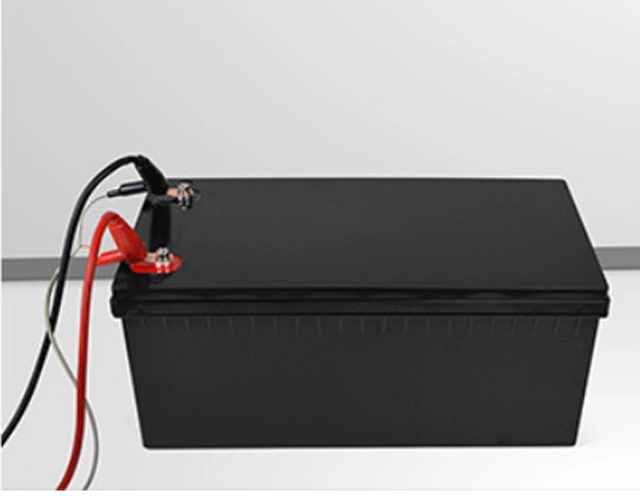

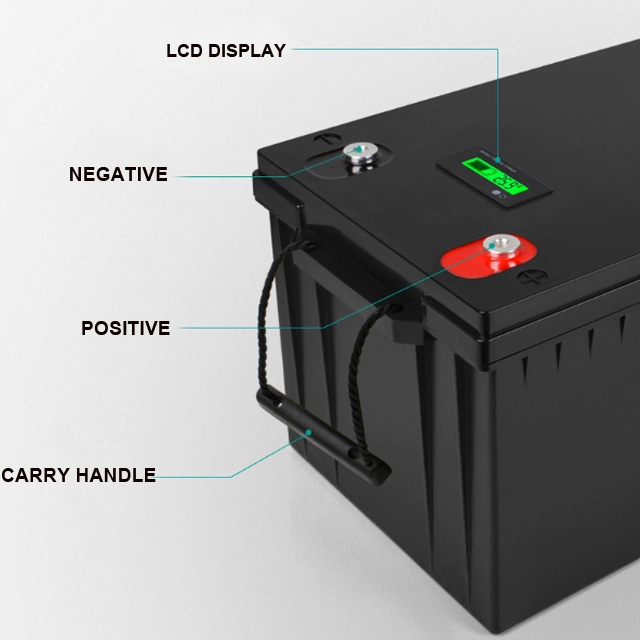

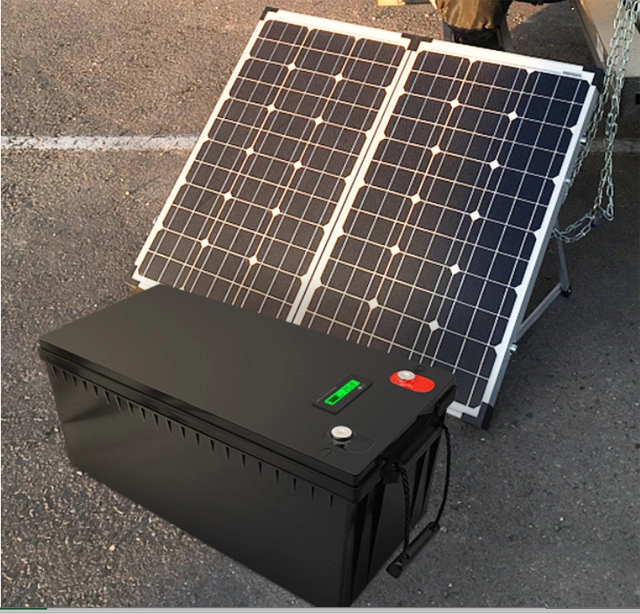

Product display & Application
Company Profile

Pine Energy(shenzhen)Co.,Ltd.

Pine Energy (shenzhen)Co., Ltd. Is a high-tech enterprise, specialized in R&D and manufacture of Lithium rechargeable battery,LiFePo4 battery and Intelligent flight battery for UAV and agriculture sprayer and so on.
With advanced hi-tech and equipment, Pine engerge has automatic production line and strictly controls raw material inspection,production procedure and finished product inspection. That's why more and more people choose Pine Energy as their partner in the world energy industry. Our Lithium battery products are widely used in UPS backup\ Telecom towers\Solar energy storage system\electric vehicles\AGV\Golf-cart\Street-cleaner\electric-motorcycle\solar street light\and electric tools etc. We own 4 automatic lines, 150 workers, all products are full inspection. OEM/ODM support. Our total production capacity is 1 million batteries per month.
Workshop
Certifications
FAQ

A): Do you accept small order quantity, how many it is?Answer: Yes, we accept small order quantity. even 1pcB): what's the advantage of Pine energy?Answer: Strong R& D ability and quality assuranceC): Do you accept OEM/ODM?Answer: We can and be able to provide OEM / ODM service.D): How long is the warranty period? Answer:Thank you for your question.We offer 3 or 5 years as the warranty period depends on customer demand.
E): How long is the warranty period? Answer:Thank you for your question.We offer 3 or 5 years as the warranty period depends on customer demand.
F): What’s the factory production capacity Answer: 2MWH per day for the production capacity . Welcome to visit our factory and contact us if any further questions
