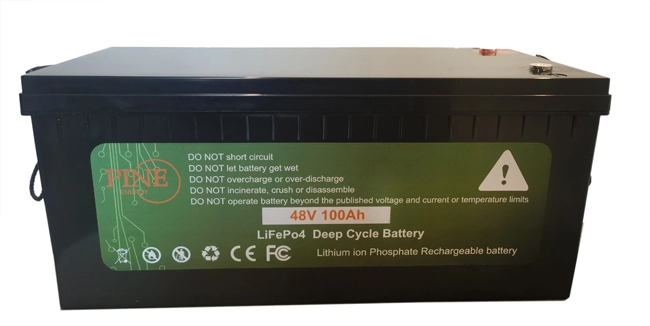

After the High Quality 48v 100ah Factory Sale Various Lifepo4 Rechargeable Lithium Ion Battery For Solar was launched, we received good feedback, and our customers believed that this type of product could meet their own needs.In addition,It is supposed to cater to all kinds of customers across the market.
Applying the technology to the manufacturing process of the product turns out to be highly helpful. Featuring stability and durability, the product is suitable for the field(s) of 48V Lifepo4 battery. High Quality 48v 100ah Factory Sale Various Lifepo4 Rechargeable Lithium Ion Battery For Solar with reasonable price, excellent performance and excellent quality, it has won wide recognition from customers. In the future,Pine Energy (Shenzhen)co., Ltd will open up channels for introducing talents, and improve technological innovation capabilities by introducing more outstanding talents as intellectual support, so as to achieve better and faster development.
| Brand Name | PINE | Model Number | PN-LP-48100 |
| Battery Size | 18650 | Place of Origin | China |
| Warranty | 3months-1year | Anode Material | LFP |
| Application | Power Tools, Home Appliances, BOATS, Golf Carts, Electric Bicycles/Scooters, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems | Product name | Litihum battery |
| Capacity @50A | 120min | Energy | 4800Wh |
| Resistance | ≤30mΩ @ 50% SOC | Efficiency | 99% |
| Self Discharge | ≤3.5% Per Month | Maximum Modules in series of Parallel | 15 |
| Dimensions(L*W*H) | 560*269*220mm | Weight | 560*269*220mm |
| Terminal Type | M8/M6 |
Electrical Specification | Mechanical Specifications | ||||
Nominal Voltage | 48V | Dimensions(L*W*H): | 560*269*220mm | ||
Nominal Capacity | 100Ah | Weight: | 45KG | ||
Capacity @50A | 120min | Terminal Type: | M8/M6 | ||
Energy | 4800Wh | Case Material: | ABS | ||
Resistance | ≤30mΩ @ 50% SOC | Enclosure Protection: | IP65 | ||
Efficiency: | 99% | Cell Type: | Prismatic | ||
Self Discharge | ≤3.5% Per Month | Chemistry: | LifePo4 | ||
Maximum Modules in series of Parallel: | 15 | Configuration: | 15S1P | ||
Discharge Specifications | Charge Specifications | ||||
Maximum Continuous Discharge Current | 100A | Recommend Charge Current | 5A-50A | ||
Peak Discharge Current | 260A≤5s | Maximum Charge Current | 100A | ||
BMS Discharge Current Cut-off | 300A±20A [2.2±1ms] | Recommed Charge Voltage | 53.2-54.7V | ||
Recommend Low Voltage Disconnect | 33.0V | BMS Charge Voltage Cut-off | 56.25V[3.75±0.1V] | ||
BMS Discharge Voltage Cut-off | 33.0V[2.2±0.08 vpc] [100±50ms] | Reconnect Voltage | 54.75V[3.65±0.1V] | ||
Reconnect Voltage | 37.5V[2.5±0.1vpc] | Balancing Voltage | 52.5V[3.5±0.025vpc] | ||
Short Circuit Protection | 200-400μs | Balancing Current | 35±5mA | ||
Temperature Specifications | Compliance Specifications | ||||
Discharge Temperature | -4 to 140℉[-20 to 60℃] | Certifications | CE[Battery], UN38.3[Battery] IEC62133[cell] | ||
Charge Temperature | 32 to 113℉[0 to 45℃] | ||||
Storage Temperature | -4 to 113℉[-20 to 45℃] | ||||
BMS High Temperature cut-off Discharge | 149℉[65℃][Customized] | ||||
Reconnect Temperature | 122℉[50℃][Customized] | ||||
Low Temperature Cut-off Charge | 32℉[0℃][Customized] | ||||
High Temperature Cut-off Charge | 129.2℉[54℃][Customized] | Shipping Classification | UN3480,CLASS9 | ||
