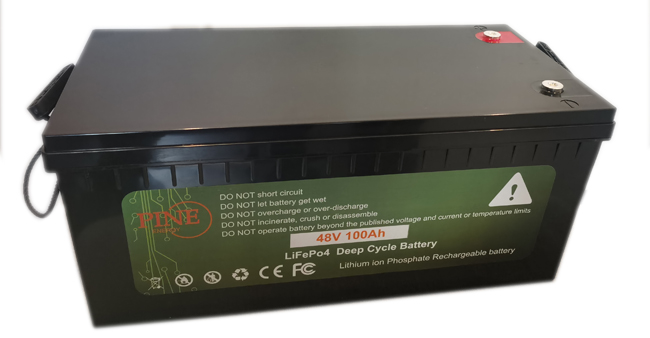

Hot Sale Best Quality New Customized Rv Solar System Lithium Batteries Pack Power Bank has been tested to conform to international standards. Developed by our creative R&D experts and manufactured by our skilled workers, it has excellent features. With those superiorities, solar inverter, lithium ion battery , DC/AC power inverter , outdoor portable station, Car jump starter will surely stand out and provide customers with benefits in the market.
Pine Energy (Shenzhen)co., Ltd has always attached great importance to the pain points of the industry. The newly launched products are specially developed to solve the pain points of the industry, which perfectly solve the pain points of the industry and are enthusiastically sought after by the market. Designed by professional designers, Hot Sale Best Quality New Customized Rv Solar System Lithium Batteries Pack Power Bank is attractive in its appearance. Our capable staff has been devoted to the improvement and upgrades of technology.In the Lithium Ion Batteries,the product is widely used.
| Brand Name | PINE | Model Number | PN-LP-48100 |
| Battery Size | 18650 | Place of Origin | China |
| Warranty | 3months-1year | Anode Material | LFP |
| Application | Power Tools, Home Appliances, BOATS, Golf Carts, Electric Bicycles/Scooters, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems | Product name | Litihum battery |
| Capacity @50A | 120min | Energy | 4800Wh |
| Resistance | ≤30mΩ @ 50% SOC | Efficiency | 99% |
| Self Discharge | ≤3.5% Per Month | Maximum Modules in series of Parallel | 15 |
| Dimensions(L*W*H) | 560*269*220mm | Weight | 560*269*220mm |
| Terminal Type | M8/M6 |
Electrical Specification | Mechanical Specifications | ||||
Nominal Voltage | 48V | Dimensions(L*W*H): | 560*269*220mm | ||
Nominal Capacity | 100Ah | Weight: | 45KG | ||
Capacity @50A | 120min | Terminal Type: | M8/M6 | ||
Energy | 4800Wh | Case Material: | ABS | ||
Resistance | ≤30mΩ @ 50% SOC | Enclosure Protection: | IP65 | ||
Efficiency: | 99% | Cell Type: | Prismatic | ||
Self Discharge | ≤3.5% Per Month | Chemistry: | LifePo4 | ||
Maximum Modules in series of Parallel: | 15 | Configuration: | 15S1P | ||
Discharge Specifications | Charge Specifications | ||||
Maximum Continuous Discharge Current | 100A | Recommend Charge Current | 5A-50A | ||
Peak Discharge Current | 260A≤5s | Maximum Charge Current | 100A | ||
BMS Discharge Current Cut-off | 300A±20A [2.2±1ms] | Recommed Charge Voltage | 53.2-54.7V | ||
Recommend Low Voltage Disconnect | 33.0V | BMS Charge Voltage Cut-off | 56.25V[3.75±0.1V] | ||
BMS Discharge Voltage Cut-off | 33.0V[2.2±0.08 vpc] [100±50ms] | Reconnect Voltage | 54.75V[3.65±0.1V] | ||
Reconnect Voltage | 37.5V[2.5±0.1vpc] | Balancing Voltage | 52.5V[3.5±0.025vpc] | ||
Short Circuit Protection | 200-400μs | Balancing Current | 35±5mA | ||
Temperature Specifications | Compliance Specifications | ||||
Discharge Temperature | -4 to 140℉[-20 to 60℃] | Certifications | CE[Battery], UN38.3[Battery] IEC62133[cell] | ||
Charge Temperature | 32 to 113℉[0 to 45℃] | ||||
Storage Temperature | -4 to 113℉[-20 to 45℃] | ||||
BMS High Temperature cut-off Discharge | 149℉[65℃][Customized] | ||||
Reconnect Temperature | 122℉[50℃][Customized] | ||||
Low Temperature Cut-off Charge | 32℉[0℃][Customized] | ||||
High Temperature Cut-off Charge | 129.2℉[54℃][Customized] | Shipping Classification | UN3480,CLASS9 | ||
