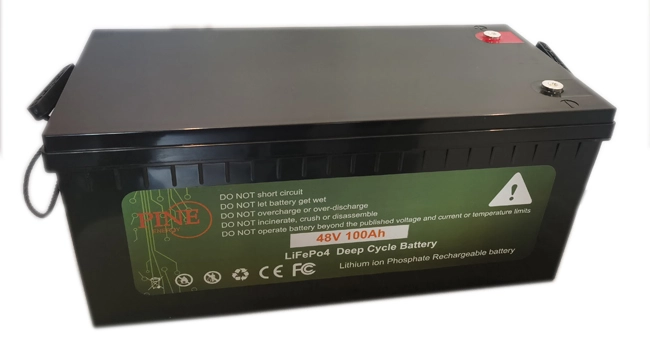

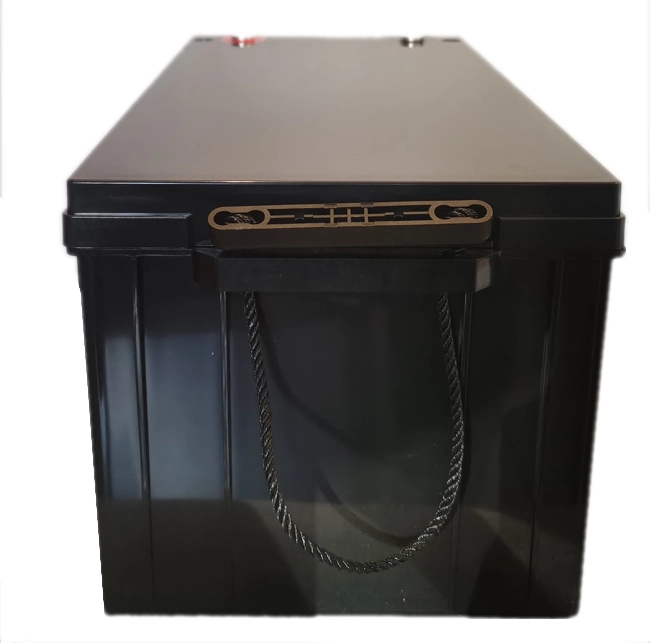

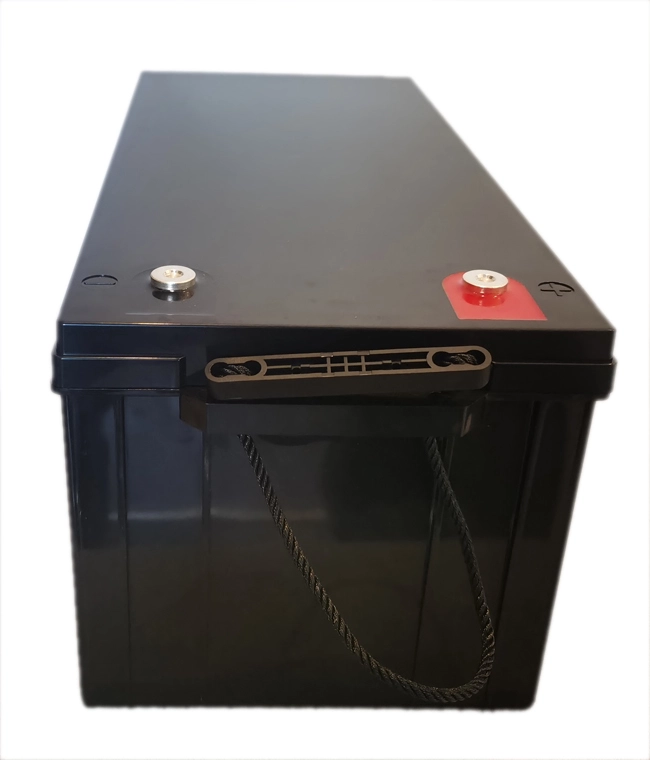

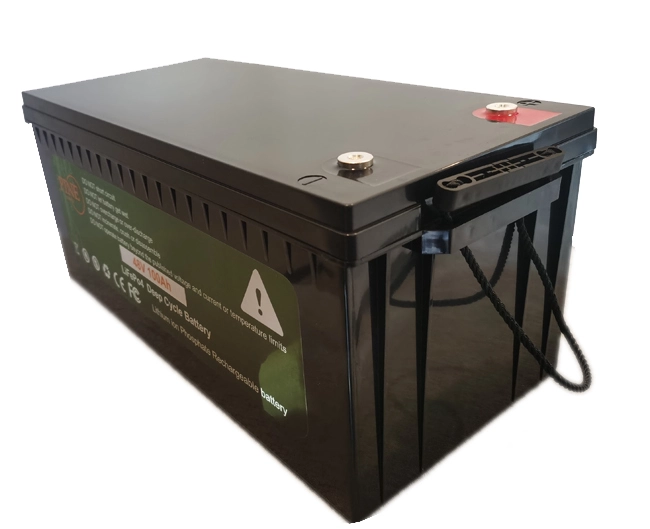

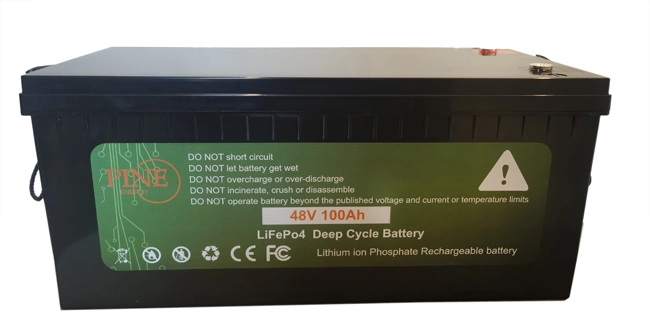

we have successfully developed one of the most outstanding products-Cheap 48v 100ah Latest Design Superior Quality Lifepo4 Lithium Ion Rv Battery Solar Generator.We have conducted many practical experiments which prove that the product can function its greatest effect in the field(s) of Lithium Ion Batteries.
Keeping close up with the latest trend, Pine Energy (Shenzhen)co., Ltd has made Cheap 48v 100ah Latest Design Superior Quality Lifepo4 Lithium Ion Rv Battery Solar Generator a competitive product in the market. It is expected to lead the industry trend and bring benefits to customers. Technological innovation is an important factor for products to form core competitiveness and maintain competitive advantage. After years of growth and development,Pine Energy (Shenzhen)co., Ltd have constructed characteristic corporate culture systems and confirmed our business principle of 'customer first'. We will always focus on customers' needs and promise that we will provide the most satisfying and valuable products.
| Brand Name | PINE | Model Number | PN-LP-48100 |
| Battery Size | 18650 | Place of Origin | China |
| Warranty | 3months-1year | Anode Material | LFP |
| Application | Power Tools, Home Appliances, BOATS, Golf Carts, Electric Bicycles/Scooters, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems | Product name | Litihum battery |
| Capacity @50A | 120min | Energy | 4800Wh |
| Resistance | ≤30mΩ @ 50% SOC | Efficiency | 99% |
| Self Discharge | ≤3.5% Per Month | Maximum Modules in series of Parallel | 15 |
| Dimensions(L*W*H) | 560*269*220mm | Weight | 560*269*220mm |
| Terminal Type | M8/M6 | Chargeable | Yes |
| Certification | CE[Battery], UN38.3[Battery],IEC62133[cell] |
Electrical Specification | Mechanical Specifications | ||||
Nominal Voltage | 48V | Dimensions(L*W*H): | 560*269*220mm | ||
Nominal Capacity | 100Ah | Weight: | 45KG | ||
Capacity @50A | 120min | Terminal Type: | M8/M6 | ||
Energy | 4800Wh | Case Material: | ABS | ||
Resistance | ≤30mΩ @ 50% SOC | Enclosure Protection: | IP65 | ||
Efficiency: | 99% | Cell Type: | Prismatic | ||
Self Discharge | ≤3.5% Per Month | Chemistry: | LifePo4 | ||
Maximum Modules in series of Parallel: | 15 | Configuration: | 15S1P | ||
Discharge Specifications | Charge Specifications | ||||
Maximum Continuous Discharge Current | 100A | Recommend Charge Current | 5A-50A | ||
Peak Discharge Current | 260A≤5s | Maximum Charge Current | 100A | ||
BMS Discharge Current Cut-off | 300A±20A [2.2±1ms] | Recommed Charge Voltage | 53.2-54.7V | ||
Recommend Low Voltage Disconnect | 33.0V | BMS Charge Voltage Cut-off | 56.25V[3.75±0.1V] | ||
BMS Discharge Voltage Cut-off | 33.0V[2.2±0.08 vpc] [100±50ms] | Reconnect Voltage | 54.75V[3.65±0.1V] | ||
Reconnect Voltage | 37.5V[2.5±0.1vpc] | Balancing Voltage | 52.5V[3.5±0.025vpc] | ||
Short Circuit Protection | 200-400μs | Balancing Current | 35±5mA | ||
Temperature Specifications | Compliance Specifications | ||||
Discharge Temperature | -4 to 140℉[-20 to 60℃] | Certifications | CE[Battery], UN38.3[Battery] IEC62133[cell] | ||
Charge Temperature | 32 to 113℉[0 to 45℃] | ||||
Storage Temperature | -4 to 113℉[-20 to 45℃] | ||||
BMS High Temperature cut-off Discharge | 149℉[65℃][Customized] | ||||
Reconnect Temperature | 122℉[50℃][Customized] | ||||
Low Temperature Cut-off Charge | 32℉[0℃][Customized] | ||||
High Temperature Cut-off Charge | 129.2℉[54℃][Customized] | Shipping Classification | UN3480,CLASS9 | ||
