Pine Energy (Shenzhen)co., Ltd relying on strong innovation ability and firm R&D perseverance, successfully developed Built-in 100a Bms Rechargeable Batteries Manufacturers 12v 100ah Lifepo4 Battery. The accumulated rich experience and strong technological innovation capabilities have kept Pine Energy (Shenzhen)co., Ltd at the forefront of the market, and Built-in 100a Bms Rechargeable Batteries Manufacturers 12v 100ah Lifepo4 Battery developed have perfectly solved the pain points of the industry and the market. To make us continue to thrive in the next decade and beyond, we must focus on improving our technology capabilities and gathering more talents in the industry. With our full efforts, Pine Energy (Shenzhen)co., Ltd believe that we will stay ahead of other competitors in the future.
Brand Name | PINE | Model Number | PN-LP-12100 |
Battery Size | 18650 | Place of Origin | China |
Weight | 12KG | Warranty | 5years |
Anode Material | LFP | Application | Solar Energy Storage Systems, RV, Camping, Solar Home, Boat |
Product name | Lithium Battery | Chemistry | LifePo4 |
Configuration | 4S1P | Case Material | ABS |
Enclosure Protection | IP65 | Short Circuit Protection | 200-400μs |
Low Temperature Cut-off Charge | 32℉[0℃][Customized] | High Temperature Cut-off Charge | 129.2℉[54℃][Customized] |
Shipping Classification | UN3480,CLASS9 | Chargeable | Yes |
Certification | CE[Battery], UN38.3[Battery] IEC62133[cell] |
Electrical Specification | Mechanical Specifications | ||||

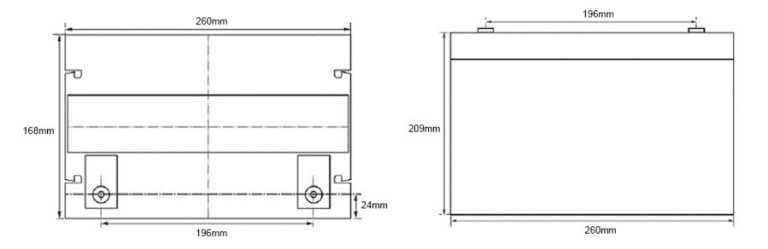

Nominal Voltage: | 12.8V | Dimensions: | 260*168*209mm | ||
Nominal Capacity | 100Ah | Weight: | 12KG | ||
Capacity @20A | 300min | Terminal Type: | M8/M6 | ||
Energy | 1280Wh | Case Material: | ABS | ||
Resistance | ≤30mΩ @ 50% SOC | Enclosure Protection: | IP65 | ||
Efficiency: | 99% | Cell Type: | Prismatic | ||
Self Discharge | ≤3.5% Per Month | Chemistry: | LifePo4 | ||
Maximum Modules in series of Parallel: | 4 | Configuration: | 4S1P |
Discharge Specifications | Charge Specifications | ||||
Maximum Continuous Discharge Current | 100A | Recommend Charge Current | 5A-50A | ||
Peak Discharge Current | 260A≤5s | Maximum Charge Current | 100A | ||
BMS Discharge Current Cut-off | 300A±50A [2.2±1ms] | Recommed Charge Voltage | 14.2-14.6V | ||
Recommend Low Voltage Disconnect | 8.8V | BMS Charge Voltage Cut-off | 15.0V[3.75±0.1V] | ||
BMS Discharge Voltage Cut-off | 8.8V[2.2±0.08 vpc] [100±50ms] | Reconnect Voltage | 14.6V[3.65±0.1V] | ||
Reconnect Voltage | 10V[2.5±0.1vpc] | Balancing Voltage | 14.0V[3.5±0.025vpc] | ||
Short Circuit Protection | 200-400μs | Balancing Current | 35±5mA |
Temperature Specifications | ||
Discharge Temperature | -4 to 140℉[-20 to 60℃] | |
Charge Temperature | 32 to 113℉[0 to 45℃] | |
Storage Temperature | 23 to 113℉[-5 to 45℃] | |
BMS High Temperature cut-off Discharge | 149℉[65℃][Customized] | |
Reconnect Temperature | 122℉[50℃][Customized] | |
Low Temperature Cut-off Charge | 32℉[0℃][Customized] | |
High Temperature Cut-off Charge | 129.2℉[54℃][Customized] |
