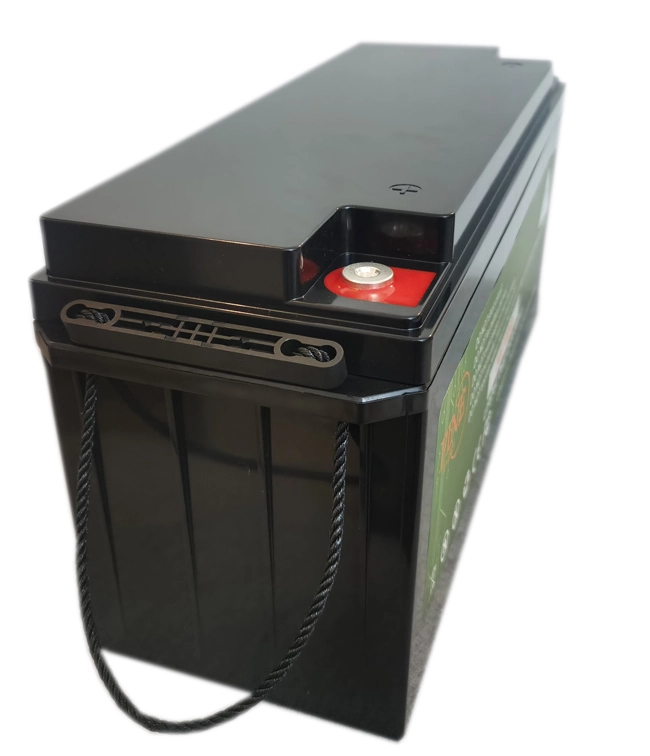

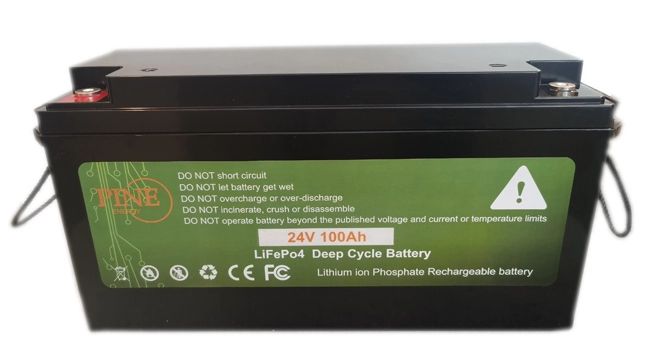

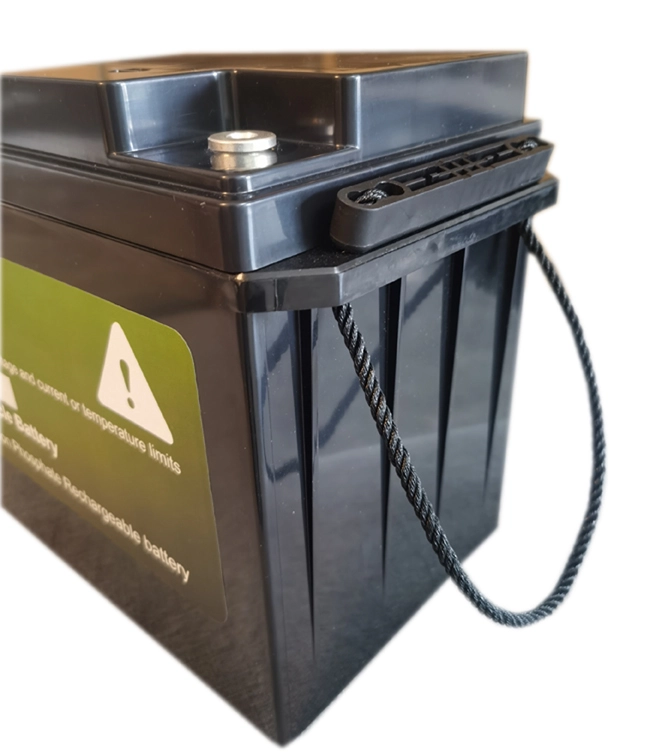

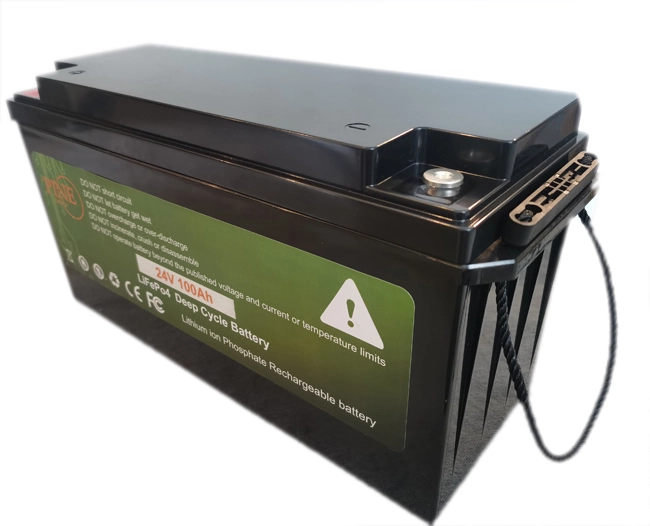

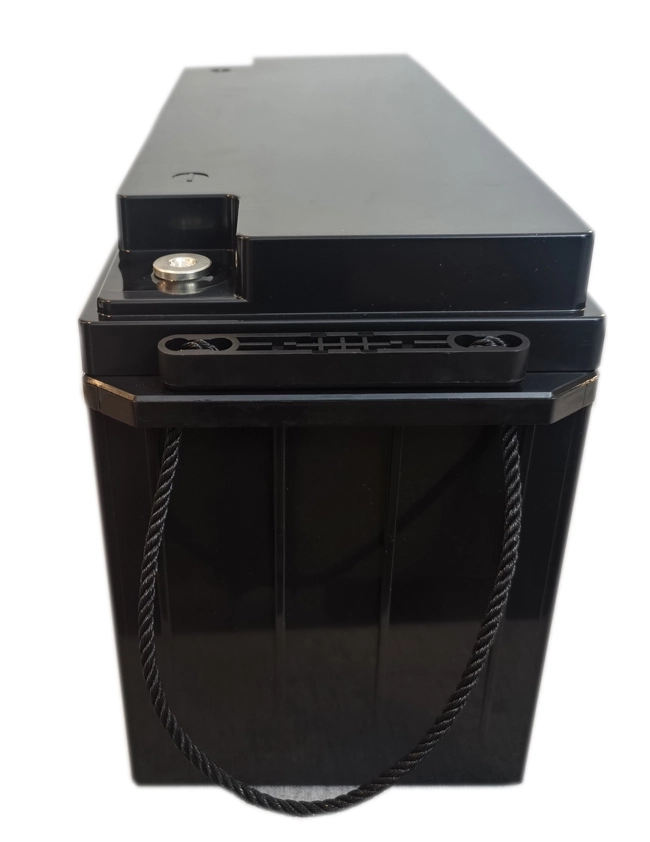

Solar System Deep Cycle Lifepo4 24v100ah Lithium Battery Widely Used On Fishing Boat And Golf Buggy Lithium Ion Battery Pack is created with fashionable design idea. It is designed to meet the industry criterion. Pine Energy (Shenzhen)co., Ltd have realized the importance of technology. In recent years, we have been investing heavily in technology improvement and upgrades and the research and development of new products. In this way, we can occupy a more competitive position in the industry.
| Brand Name | PINE | Model Number | PN-LP-24100 |
| Battery Size | 18650 | Place of Origin | China |
| Warranty | 3months-1year | Anode Material | LFP |
| Application | Power Tools, Home Appliances, BOATS, Golf Carts, Electric Bicycles/Scooters, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems | Product name | Litihum battery |
| Capacity @50A | 120min | Energy | 2560Wh |
| Resistance | ≤30mΩ @ 50% SOC | Efficiency | 99% |
| Self Discharge | ≤3.5% Per Month | Maximum Modules in series of Parallel | 8 |
| Dimensions(L*W*H) | 486*170*240mm | Weight | 20KG |
| Terminal Type | M8/M6 |
Electrical Specification | Mechanical Specifications | ||||
Nominal Voltage | 25.6V | Dimensions(L*W*H) | 486*170*240mm | ||
Nominal Capacity | 100Ah | Weight: | 20KG | ||
Capacity @50A | 120min | Terminal Type: | M8/M6 | ||
Energy | 2560Wh | Case Material: | ABS | ||
Resistance | ≤30mΩ @ 50% SOC | Enclosure Protection: | IP65 | ||
Efficiency: | 99% | Cell Type: | Prismatic | ||
Self Discharge | ≤3.5% Per Month | Chemistry: | LifePo4 | ||
Maximum Modules in series of Parallel: | 8 | Configuration: | 8S1P | ||
Discharge Specifications | Charge Specifications | ||||
Maximum Continuous Discharge Current | 100A | Recommend Charge Current | 5A-50A | ||
Peak Discharge Current | 260A≤5s | Maximum Charge Current | 100A | ||
BMS Discharge Current Cut-off | 300A±20A [2.2±1ms] | Recommed Charge Voltage | 28.4-29.2V | ||
Recommend Low Voltage Disconnect | 17.6V | BMS Charge Voltage Cut-off | 30V[3.75±0.1V] | ||
BMS Discharge Voltage Cut-off | 17.6V[2.2±0.08 vpc] [100±50ms] | Reconnect Voltage | 29.2V[3.65±0.1V] | ||
Reconnect Voltage | 20V[2.5±0.1vpc] | Balancing Voltage | 28.0V[3.5±0.025vpc] | ||
Short Circuit Protection | 200-400μs | Balancing Current | 35±5mA | ||
Temperature Specifications | Compliance Specifications | ||||
Discharge Temperature | -4 to 140℉[-20 to 60℃] | Certifications | CE[Battery], UN38.3[Battery] IEC62133[cell] | ||
Charge Temperature | 32 to 113℉[0 to 45℃] | ||||
Storage Temperature | -4 to 113℉[-20 to 45℃] | ||||
BMS High Temperature cut-off Discharge | 149℉[65℃][Customized] | ||||
Reconnect Temperature | 122℉[50℃][Customized] | ||||
Low Temperature Cut-off Charge | 32℉[0℃][Customized] | ||||
High Temperature Cut-off Charge | 129.2℉[54℃][Customized] | Shipping Classification | UN3480,CLASS9 | ||
