Pine Energy (Shenzhen)co., Ltd is engaged in offering a broad assortment of Lithium Ion Batteries. Through the application of technology, Pine Energy (Shenzhen)co., Ltd have mastered the most efficient and labor-saving method to manufacture the product.It is its wide and effective performance that contributes to its wide uses in the application fields of Lithium Ion Batteries. In aspect of the product design, our design team always pays close attention to the customers' taste and industry trends. Thanks to this, our Cheap Lithium Ion Deep Cycle Lithium Battery Golf Cart Made In China Superior Quality can fully attract people's attention with its unique appearance. Moreover, it is excellent performance, making it worth the investment.
Brand Name | PINE | Model Number | PN-GR-12150 |
Battery Size | 18650 | Place of Origin | China |
Warranty | 3months-1year | Anode Material | LFP |
Application | Power Tools, Home Appliances, BOATS, Golf Carts, Electric Bicycles/Scooters, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems | Product name | Lithium Battery |
Capacity @20A | 450min | Energy | 1920Wh |
Resistance | ≤30mΩ @ 50% SOC | Efficiency | 99% |
Self Discharge | ≤3.5% Per Month | Maximum Modules in series of Parallel | 4 |
Dimensions | 355*175*188mm | Weight | 14.4KG |

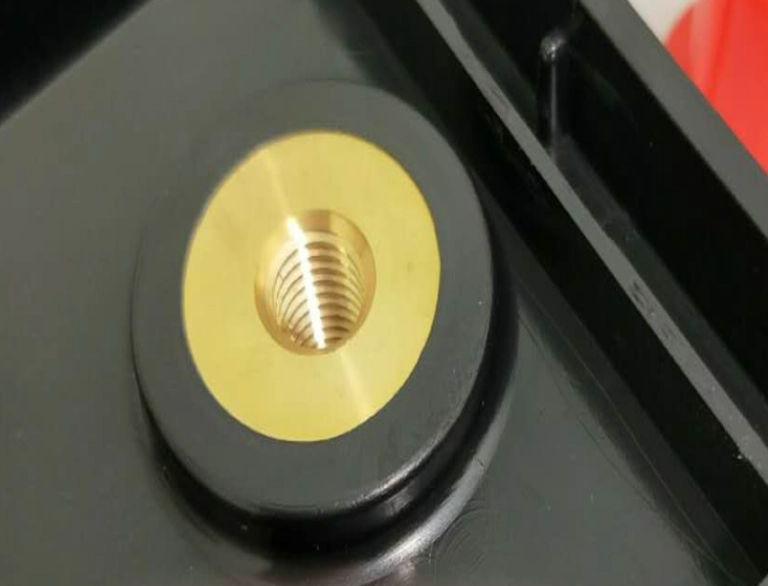

Terminal Type | M8/M6 |
Electrical Specification | Mechanical Specifications | ||||
Nominal Voltage | 12.8V | Dimensions | 355*175*188mm | ||
Nominal Capacity | 150Ah | Weight | 14.4KG | ||
Capacity @20A | 450min | Terminal Type | M8/M6 | ||
Energy | 1920Wh | Case Material | ABS | ||
Resistance | ≤30mΩ @ 50% SOC | Enclosure Protection | IP65 | ||
Efficiency: | 99% | Cell Type | Prismatic | ||
Self Discharge | ≤3.5% Per Month | Chemistry | LifePo4 | ||
Maximum Modules in series of Parallel: | 4 | Configuration | 4S3P |
Discharge Specifications | Charge Specifications | ||||
Maximum Continuous Discharge Current | 100A | Recommend Charge Current | 5A-50A | ||
Peak Discharge Current | 260A≤5s | Maximum Charge Current | 100A | ||
BMS Discharge Current Cut-off | 300A±50A [2.2±1ms] | Recommed Charge Voltage | 14.2-14.6V | ||
Recommend Low Voltage Disconnect | 8.8V | BMS Charge Voltage Cut-off | 15.0V[3.75±0.1V] | ||
BMS Discharge Voltage Cut-off | 8.8V[2.2±0.08 vpc] [100±50ms] | Reconnect Voltage | 14.6V[3.65±0.1V] | ||
Reconnect Voltage | 10V[2.5±0.1vpc] | Balancing Voltage | 14.0V[3.5±0.025vpc] | ||
Short Circuit Protection | 200-400μs | Balancing Current | 35±5mA |
Temperature Specifications | Compliance Specifications | ||||
Discharge Temperature | -4 to 140℉[-20 to 60℃] | Certifications | CE[Battery], UN38.3[Battery] IEC62133[cell] | ||
Charge Temperature | 32 to 113℉[0 to 45℃] | ||||
Storage Temperature | 23 to 113℉[-5 to 45℃] | ||||
BMS High Temperature cut-off Discharge | 149℉[65℃][Customized] | ||||
Reconnect Temperature | 122℉[50℃][Customized] | ||||
Low Temperature Cut-off Charge | 32℉[0℃][Customized] | ||||
High Temperature Cut-off Charge | 129.2℉[54℃][Customized] | Shipping Classification | UN3480,CLASS9 |
