Thanks to our committed and outstanding technical staff, our technologies have been upgraded to save more labor and cost. Its application ranges have been expanded a lot. At present, it is widely used in the field(s) of Lithium Ion Batteries.
Concerning the industry development,Pine Energy (Shenzhen)co., Ltd has been driven to develop new products to keep us competitive. Continuous innovation ability is the fundamental guarantee of product quality. For product inquiries, technical support, and other questions, you can reach us in any way stated on our 'Contact Us' page.

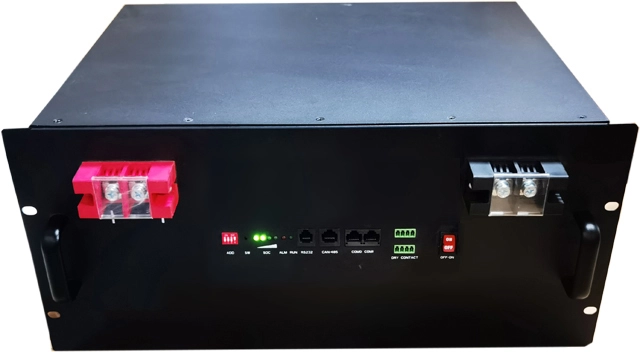

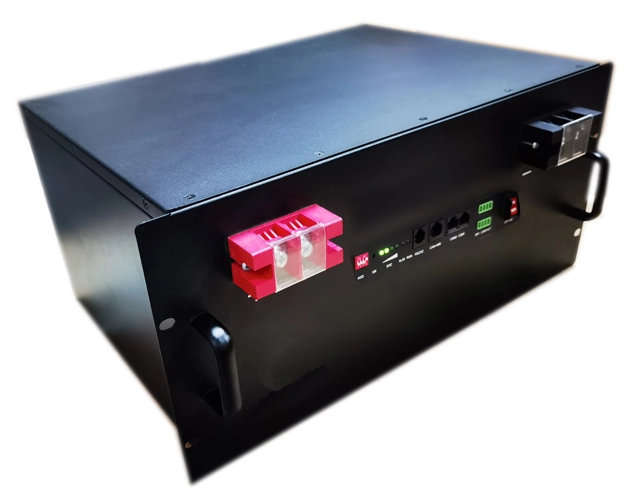

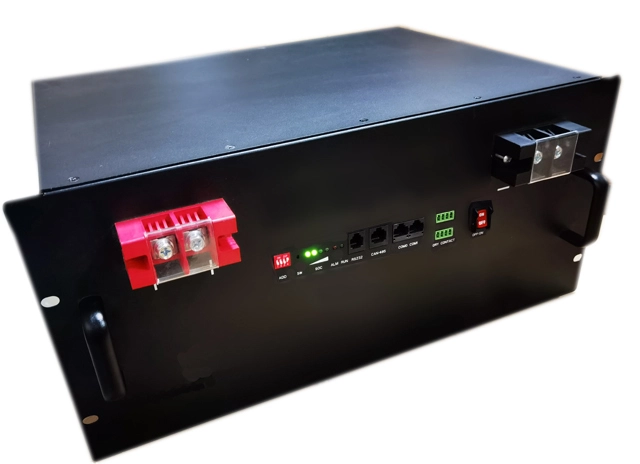

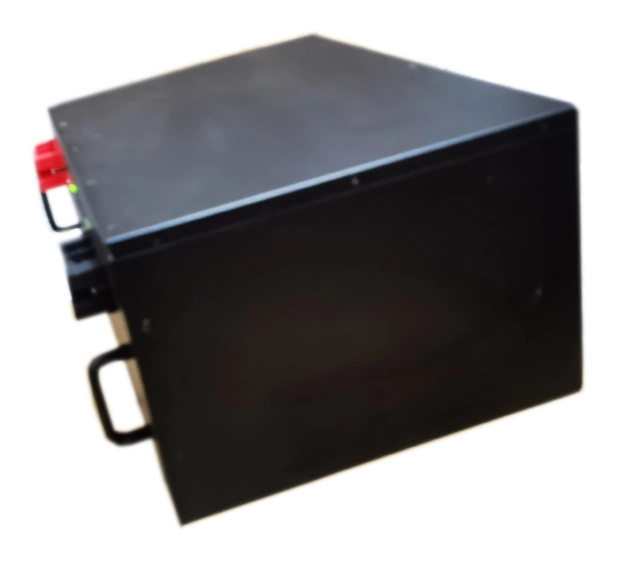

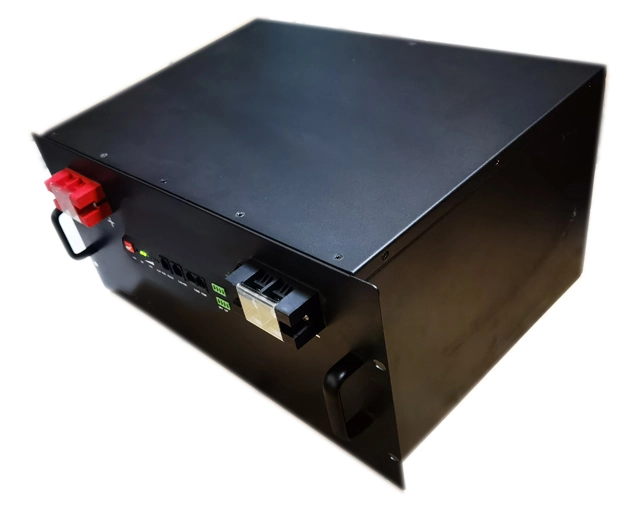

Brand Name | PINE | Model Number | PN-LP-48100 |
Battery Size | 18650 | Place of Origin | China |
Weight | 48KG | Warranty | 5years |
Anode Material | LFP | Application | Telecom /UPS/Solar Energy Storage |
Product name | Lithium Battery | Chemistry | LifePo4 |
Configuration | 15S1P | Case Material | ABS |
Enclosure Protection | IP20 | Short Circuit Protection | 200-400μs |
Low Temperature Cut-off Charge | 32℉[0℃][Customized] | High Temperature Cut-off Charge | 129.2℉[54℃][Customized] |
Shipping Classification | UN3480,CLASS9 |
Electrical Specification | Mechanical Specifications | ||||
Nominal Voltage: | 48V | Dimensions: | 484*420*178mm | ||
Nominal Capacity | 100Ah | Weight: | 48KG | ||
Capacity @20A | 300min | Terminal Type: | Steel/M8 | ||
Energy | 4800Wh | Case Material: | SPCC | ||
Resistance | ≤30mΩ @ 50% SOC | Enclosure Protection: | IP20 | ||
Efficiency: | 99% | Cell Type: | Prismatic | ||
Self Discharge | ≤3.5% Per Month | Chemistry: | LifePo4 | ||
Maximum Modules in series of Parallel: | 15 | Configuration: | 15S1P |
Discharge Specifications | Charge Specifications | ||||
Maximum Continuous Discharge Current | 100A | Recommend Charge Current | 5A-40A | ||
Peak Discharge Current | ≤150A | Maximum Charge Current | 50A | ||
BMS Discharge Current Cut-off | 130A±20A [90±10ms] | Recommed Charge Voltage | 52.5-54V | ||
Recommend Low Voltage Disconnect | 42V | BMS Charge Voltage Cut-off | 54V[3.75±0.1V] | ||
BMS Discharge Voltage Cut-off | 42V[2.8±0.08 vpc] [100±50ms] | Reconnect Voltage | 51.8V[3.45±0.1V] | ||
Reconnect Voltage | 10V[2.5±0.1vpc] | Balancing Voltage | 52.5V[3.5±0.025vpc] | ||
Short Circuit Protection | 200-400μs | Balancing Current | 35±5mA |
Temperature Specifications | ||
Discharge Temperature | -4 to 140℉[-20 to 60℃] | |
Charge Temperature | 32 to 113℉[0 to 45℃] | |
Storage Temperature | 23 to 113℉[-5 to 45℃] | |
BMS High Temperature cut-off Discharge | 149℉[65℃][Customized] | |
Reconnect Temperature | 122℉[50℃][Customized] | |
Low Temperature Cut-off Charge | 32℉[0℃][Customized] | |
High Temperature Cut-off Charge | 129.2℉[54℃][Customized] |
