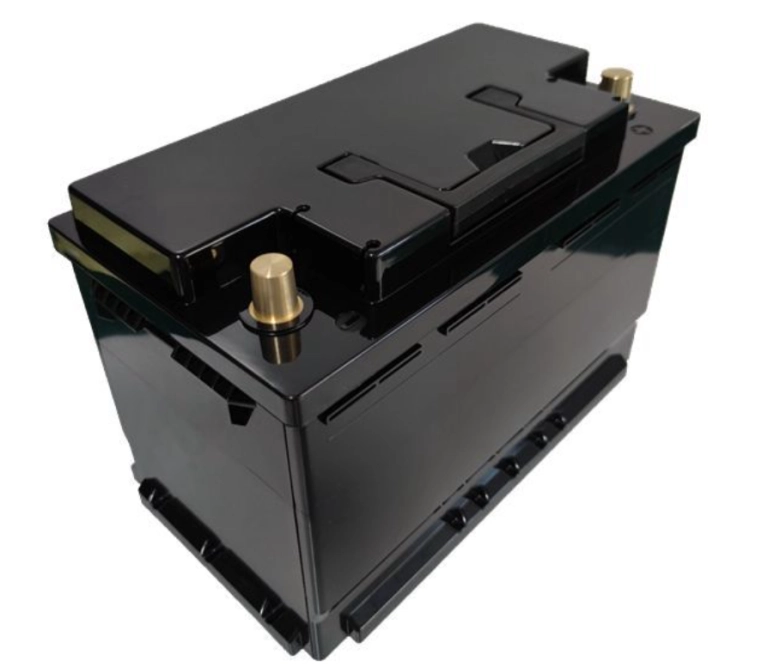

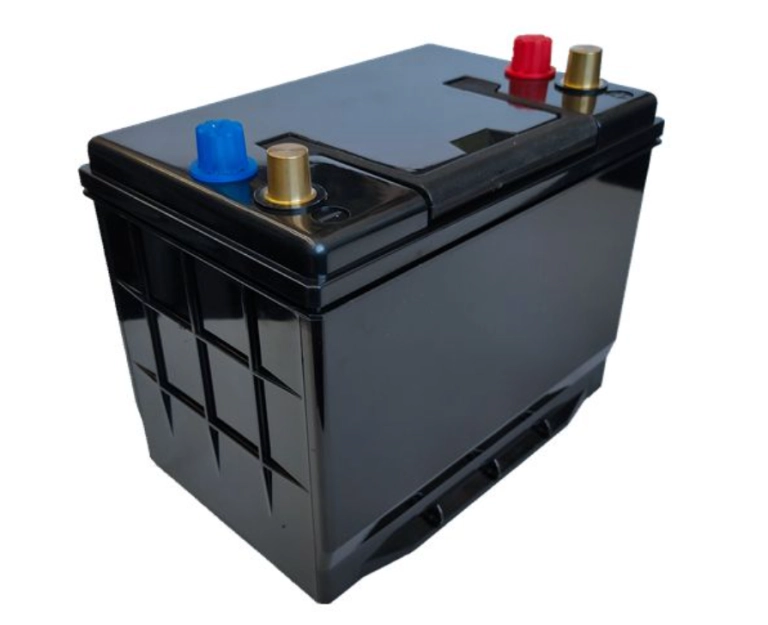

Always putting an emphasis on the improvement of the research and development, Pine Energy (Shenzhen)co., Ltd has finally developed 12v 100ah Lithium Iron Lifepo4 Deep Cycle Battery Built-in 100a Bms,4000+ Cycles Perfect For Rv Solar Marine Overland Of. The product with improved properties and features is expected to lead the trend of the industry. It has been proved that high-end technologies can contribute to the high-efficiency manufacturing process.In the field(s) of Lithium Ion Batteries,12v 100ah Lithium Iron Lifepo4 Deep Cycle Battery Built-in 100a Bms,4000+ Cycles Perfect For Rv Solar Marine Overland Of is widely accepted by users. The launch of a product that perfectly solves the industry's pain points is that Pine Energy (Shenzhen)co., Ltd has always adhered to the goal of technological innovation, and the newly developed products perfectly solve the pain points that have been lingering in the industry for a long time. Once launched, they have been enthusiastically sought after by the market.
| Brand Name | PINE | Model Number | PN-GR-12100 |
| Battery Size | 18650 | Place of Origin | China |
| Weight | 10.6KG | Warranty | 3years |
| Anode Material | LFP | Application | Home Appliances, Golf Carts, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems |
| Nominal Voltage | 12.8Volts | Product name | Lithium Battery |
| Chemistry | LifePo4 | Configuration | 4S1P |
| Case Material | ABS | Enclosure Protection | IP65 |
| Short Circuit Protection | 200-400μs | Low Temperature Cut-off Charge | 32℉[0℃][Customized] |
| High Temperature Cut-off Charge | 129.2℉[54℃][Customized] | Shipping Classification | UN3480,CLASS9 |
| Chargeable | Yes | Certification | CE[Battery], UN38.3[Battery] IEC62133[cell] |
Electrical Specification | Mechanical Specifications | ||||
Nominal Voltage: | 25.6V | Dimensions(L*W*H): | 486*170*240mm | ||
Nominal Capacity | 100Ah | Weight: | 20KG | ||

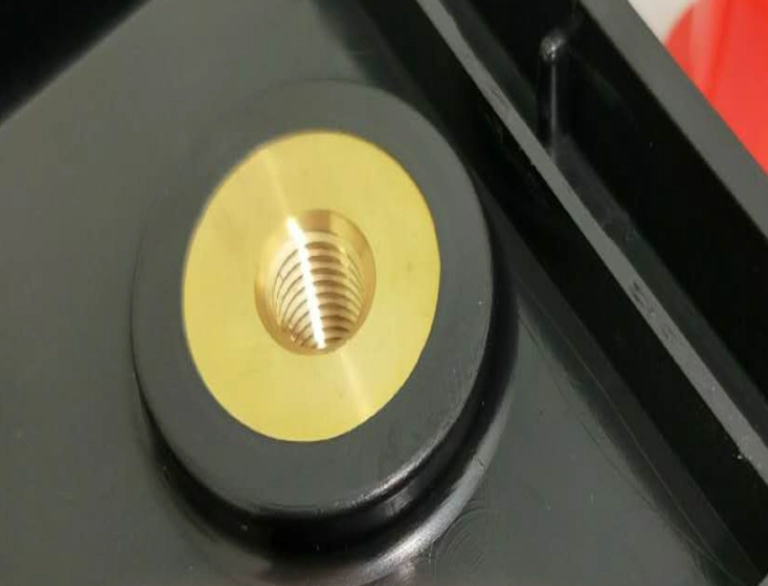

Capacity @50A | 120min | Terminal Type: | M8/M6 | ||
Energy | 2560Wh | Case Material: | ABS | ||
Resistance | ≤30mΩ @ 50% SOC | Enclosure Protection: | IP65 | ||
Efficiency: | 99% | Cell Type: | Prismatic | ||
Self Discharge | ≤3.5% Per Month | Chemistry: | LifePo4 | ||
Maximum Modules in series of Parallel: | 8 | Configuration: | 8S1P | ||
Discharge Specifications | Charge Specifications | ||||
Maximum Continuous Discharge Current | 100A | Recommend Charge Current | 5A-50A | ||
Peak Discharge Current | 260A≤5s | Maximum Charge Current | 100A | ||
BMS Discharge Current Cut-off | 300A±20A [2.2±1ms] | Recommed Charge Voltage | 28.4-29.2V | ||
Recommend Low Voltage Disconnect | 17.6V | BMS Charge Voltage Cut-off | 30V[3.75±0.1V] | ||
BMS Discharge Voltage Cut-off | 17.6V[2.2±0.08 vpc] [100±50ms] | Reconnect Voltage | 29.2V[3.65±0.1V] | ||
Reconnect Voltage | 20V[2.5±0.1vpc] | Balancing Voltage | 28.0V[3.5±0.025vpc] | ||
Short Circuit Protection | 200-400μs | Balancing Current | 35±5mA | ||
Temperature Specifications | ||
Discharge Temperature | -4 to 140℉[-20 to 60℃] | |
Charge Temperature | 32 to 113℉[0 to 45℃] | |
Storage Temperature | -4 to 113℉[-20 to 45℃] | |
BMS High Temperature cut-off Discharge | 149℉[65℃][Customized] | |
Reconnect Temperature | 122℉[50℃][Customized] | |
Low Temperature Cut-off Charge | 32℉[0℃][Customized] | |
High Temperature Cut-off Charge | 129.2℉[54℃][Customized] | |
