Lithium Ion Battery
Pine is a professional solar product supplier, lithium ion battery manufacturer and solar energy system factory in China.
Language
Pine is a professional solar product supplier, lithium ion battery manufacturer and solar energy system factory in China.
Pine Energy (Shenzhen)co., Ltd conforms to the development trend of the industry, integrates internal superior resources, adopts the industry's cutting-edge manufacturing technology and production technology, and successfully creates Custom Cheap 99% Efficiency Batteries Long Life Lifopo4 12volt Lithium Ion Battery with excellent performance and reliable quality. High-end technologies are used to manufacture Custom Cheap 99% Efficiency Batteries Long Life Lifopo4 12volt Lithium Ion Battery.The product can play out its greatest effect in the field(s) of Lithium Ion Batteries. Pine Energy (Shenzhen)co., Ltd have realized the importance of technology. In recent years, we have been investing heavily in technology improvement and upgrades and the research and development of new products. In this way, we can occupy a more competitive position in the industry.
| Brand Name | PINE | Model Number | PN-LP-12100C |
| Battery Size | 18650 | Place of Origin | China |
| Weight | 13KG | Warranty | 5years |
| Anode Material | LFP | Application | Power Tools, Home Appliances, BOATS, Golf Carts, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Solar Energy Storage Systems |
| Product name | Lithium Battery | Efficiency | 99% |
| Chemistry | LifePo4 | Configuration | 4S17P/4S2P/4S1P |
| Case Material | ABS | Enclosure Protection | IP55 |
| Short Circuit Protection | 200-400μs | Low Temperature Cut-off Charge | 32℉[0℃][Customized] |
| High Temperature Cut-off Charge | 129.2℉[54℃][Customized] | Shipping Classification | 129.2℉[54℃][Customized] |
Electrical Specification | Mechanical Specifications | ||||

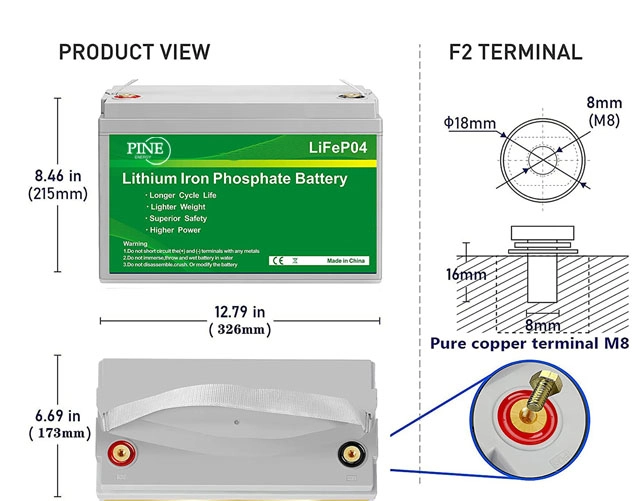

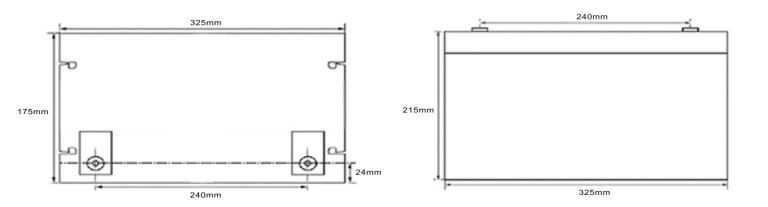

Nominal Voltage: | 12.8V | Dimensions: | 325*175*215mm | ||
Nominal Capacity | 100Ah | Weight: | 13KG | ||
Capacity @20A | 300min | Terminal Type: | M8 | ||
Energy | 1280Wh | Case Material: | ABS | ||
Resistance | ≤30mΩ @ 50% SOC | Enclosure Protection: | IP55 | ||
Efficiency: | 99% | Cell Type: | Cylindrical/Prismatic | ||
Self Discharge | ≤3.5% Per Month | Chemistry: | LifePo4 | ||
Maximum Modules in series of Parallel: | 4 | Configuration: | 4S17P/4S2P/4S1P | ||
Discharge Specifications | Charge Specifications | ||||
Maximum Continuous Discharge Current | 100A | Recommend Charge Current | 5A-50A | ||
Peak Discharge Current | 260A≤5s | Maximum Charge Current | 50A | ||
BMS Discharge Current Cut-off | 300A±50A [2.2±1ms] | Recommed Charge Voltage | 14.2-14.6V | ||
Recommend Low Voltage Disconnect | 8.8V | BMS Charge Voltage Cut-off | 15.0V[3.75±0.1V] | ||
BMS Discharge Voltage Cut-off | 8.8V[2.2±0.08 vpc] [100±50ms] | Reconnect Voltage | 14.6V[3.65±0.1V] | ||
Reconnect Voltage | 10V[2.5±0.1vpc] | Balancing Voltage | 14.0V[3.5±0.025vpc] | ||
Short Circuit Protection | 200-400μs | Balancing Current | 35±5mA | ||
Temperature Specifications | ||
Discharge Temperature | -4 to 140℉[-20 to 60℃] | |
Charge Temperature | 32 to 113℉[0 to 45℃] | |
Storage Temperature | 23 to 95℉[-5 to 35℃] | |
BMS High Temperature cut-off Discharge | 149℉[65℃][Customized] | |
Reconnect Temperature | 122℉[50℃][Customized] | |
Low Temperature Cut-off Charge | 32℉[0℃][Customized] | |
High Temperature Cut-off Charge | 129.2℉[54℃][Customized] | |
