Pine - Widely Used Superior Quality Custom Solar Lithium Electronic Lithium Ion Battery Ungrouped

The utilization of high-end technologies completely makes the greatest effects of Widely Used Superior Quality Custom Solar Lithium Electronic Lithium Ion Battery are fully played out. It has a broad application range and now is suitable for the fields .

SEND INQUIRY NOW

Nominal Voltage:: 51.8V

Nominal Capacity:: 20000mAh

Battery Type:: Cylinder

Customization:: Customized logo (Min. Order: 50 sets) , Customized packaging (Min. Order: 100 sets) , Graphic customization (Min. Order: 200 sets)

shipping:: Ocean freight

SEND INQUIRY NOW

Products Details

As the competition of the market becomes fiercer and fiercer, Pine Energy (Shenzhen)co., Ltd has paid more attention to the importance of the R&D of new products. In the past few months, we have been devoted to new product development and have successfully developed Widely Used Superior Quality Custom Solar Lithium Electronic Lithium Ion Battery. After years of special research and development, the products developed successfully break through the bottleneck of the pain points. Pine Energy (Shenzhen)co., Ltd will always stick to the business principle of 'quality first, customers foremost' and strive towards building an even more competitive and capable company aiming for an even better future.

Brand Name	PINE	Model Number	PN-14S-2000
Battery Size	18650	Place of Origin	China
Warranty	3months-1year	Anode Material	LFP
Application	Power Tools, Home Appliances, BOATS, Golf Carts, Electric Bicycles/Scooters, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems	Product name	Lithium Battery cell
Charge Current	MAX 28A	End Charge Current	0.5A
Cut-off Voltage	0V	Max Discharge Current	140A
Cells Number	112pcs	Cell Model	PROS18650
Dimensions:	16983320mm	Weight:	6.4KG
Terminal Type:	QS-9

Products Description

Electrical Specification			Mechanical Specifications
Nominal Voltage	51.8V	Dimensions	16983320mm
Rated Capacity	20000mAh	Weight	6.4KG
Charge Current	MAX 28A	Terminal Type	QS-9
End Charge Current	0.5A	Case Material	ABS+AL
Cut-off Voltage	0V	Enclosure Protection	IP65
Max Discharge Current	140A	Cell Type	Cylinder
Cells Number	112pcs	Chemistry	NCM
Cell Model	PROS18650	Configuration	14S8P

Discharge Specifications			Charge Specifications
Maximum Continuous Discharge Current	140A	Recommend Charge Current	5A-28A
Peak Discharge Current	Max 200A （10S）	Maximum Charge Current	28A[1S]
BMS Discharge Current Cut-off	NO	Recommed Charge Voltage	42.0V~58V
Recommend Low Voltage Disconnect	TYP.3.00V/TYP.3.05V	BMS Charge Voltage Cut-off	67.2V[4.2±0.1V]
BMS Discharge Voltage Cut-off	NO	Reconnect Voltage	65.6V[4.1±0.1V]
Reconnect Voltage	NO	Balancing Voltage	65.6V[4.1±0.025vpc]
Short Circuit Protection	NO	Balancing Current	35±5mA

Temperature Specifications			Compliance Specifications
Discharge Temperature	-10 to 60℃	Certifications	CE[Battery], UN38.3[Battery] IEC62133[cell]
Charge Temperature	32 to 113℉[0 to 45℃]
Storage Temperature	-4 to 113℉[-20 to 45℃]
BMS High Temperature alarm Discharge	158℉[70℃][Customized]
Reconnect Temperature	149℉[65℃][Customized]	Shipping Classification	UN3480,CLASS9

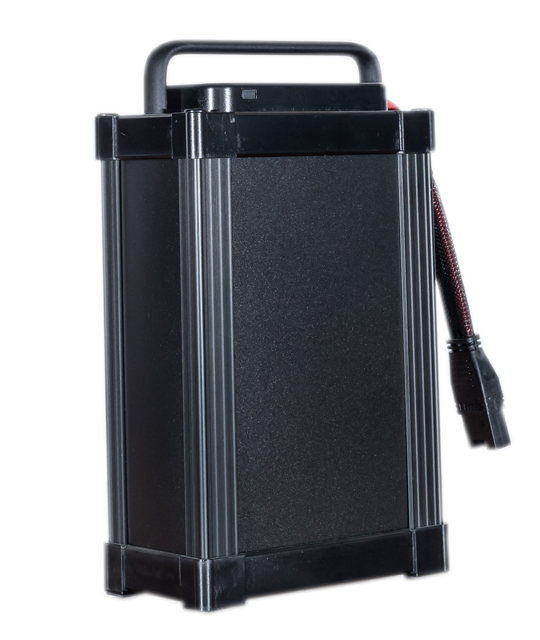

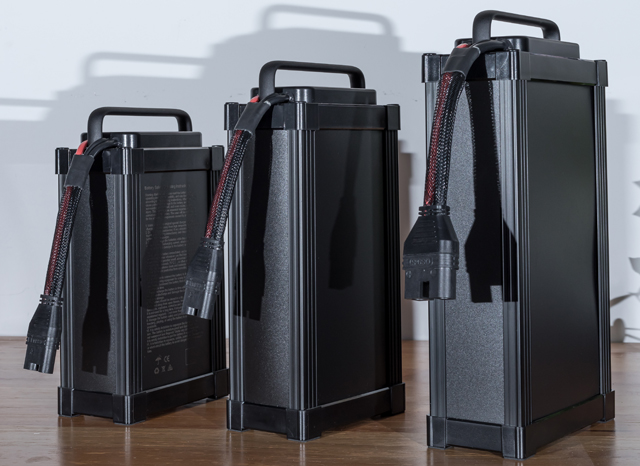

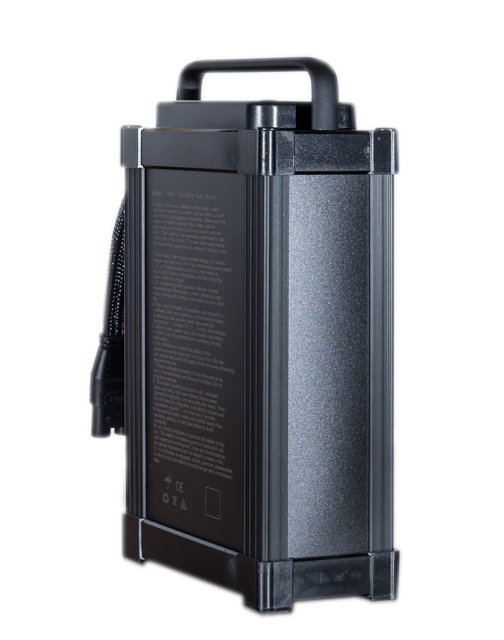

Product display & Application

Company Profile

Pine Energy(shenzhen)Co.,Ltd.

Pine Energy (shenzhen)Co., Ltd. Is a high-tech enterprise, specialized in R&D and manufacture of Lithium rechargeable battery,LiFePo4 battery and Intelligent flight battery for UAV and agriculture sprayer and so on.

With advanced hi-tech and equipment, Pine engerge has automatic production line and strictly controls raw material inspection,production procedure and finished product inspection. That's why more and more people choose Pine Energy as their partner in the world energy industry. Our Lithium battery products are widely used in UPS backup\ Telecom towers\Solar energy storage system\electric vehicles\AGV\Golf-cart\Street-cleaner\electric-motorcycle\solar street light\and electric tools etc. We own 4 automatic lines, 150 workers, all products are full inspection. OEM/ODM support. Our total production capacity is 1 million batteries per month.

Workshop

Certifications

FAQ

A): Do you accept small order quantity, how many it is? Answer: Yes, we accept small order quantity. even 1pc B): what's the advantage of Pine energy? Answer: Strong R& D ability and quality assurance C): Do you accept OEM/ODM? Answer: We can and be able to provide OEM / ODM service. D): How long is the warranty period? Answer:Thank you for your question.We offer 3 or 5 years as the warranty period depends on customer demand.

E): How long is the warranty period? Answer:Thank you for your question.We offer 3 or 5 years as the warranty period depends on customer demand.

F): What’s the factory production capacity Answer: 2MWH per day for the production capacity . Welcome to visit our factory and contact us if any further questions
