Pine - 12v 60ah Factory Manufacture Various Solar Energy Lifepo4 Battery Cheap Lithium Ion Deep Cycle Storage Batteries Ungrouped

Pine can deliver 12v 60ah Factory Manufacture Various Solar Energy Lifepo4 Battery Cheap Lithium Ion Deep Cycle Storage Batteries the best quality at low prices.We always ensure that buyers are getting what they need.

SEND INQUIRY NOW

Nominal Voltage:: 12.8V

Nominal Capacity:: 200Ah

Battery Type:: Prismatic

Customization:: Customized logo (Min. Order: 50 sets) , Customized packaging (Min. Order: 100 sets) , Graphic customization (Min. Order: 200 sets)

shipping:: Ocean freight

SEND INQUIRY NOW

Products Details

Buy top of the line quality of 12v 60ah Factory Manufacture Various Solar Energy Lifepo4 Battery Cheap Lithium Ion Deep Cycle Storage Batteries at low prices from some of the best manufacturers of the products. The Lithium Ion Batteries product will supply to all over the world, such as Europe, America, Australia,Uganda , Oman ,Sri Lanka , Surabaya . Combining all good performance of adopted raw materials, our 12v 60ah Factory Manufacture Various Solar Energy Lifepo4 Battery Cheap Lithium Ion Deep Cycle Storage Batteries has been proved to be applied to the field(s) of Lithium Ion Batteries.Our staff has tested multiple times that in the applied fields, the product can give out its best performance such as durability and stability.

Brand Name	PINE	Model Number	PN-LP-12200
Battery Size	18650	Place of Origin	China
Warranty	3months-1year	Anode Material	LFP
Application	Power Tools, Home Appliances, BOATS, Golf Carts, Electric Bicycles/Scooters, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems	Product name	Litihum battery
Capacity @20A	120min	Energy	2560Wh
Resistance	≤30mΩ @ 50% SOC	Efficiency	99%
Self Discharge	≤3.5% Per Month	Maximum Modules in series of Parallel	8
Dimensions(LWH)	486170240mm	Weight	20KG
Terminal Type	M8/M6

Products Description

Electrical Specification			Mechanical Specifications
Nominal Voltage	12.8V	Dimensions(LWH)	486170240mm
Nominal Capacity	200Ah	Weight	20KG
Capacity @50A	120min	Terminal Type	M8/M6
Energy	2560Wh	Case Material	ABS
Resistance	≤30mΩ @ 50% SOC	Enclosure Protection	IP65
Efficiency	99%	Cell Type	Prismatic
Self Discharge	≤3.5% Per Month	Chemistry	LifePo4
Maximum Modules in series of Parallel	8	Configuration	8S1P

Discharge Specifications			Charge Specifications
Maximum Continuous Discharge Current	100A	Recommend Charge Current	5A-50A
Peak Discharge Current	260A≤5s	Maximum Charge Current	100A
BMS Discharge Current Cut-off	300A±20A [2.2±1ms]	Recommed Charge Voltage	28.4-29.2V
Recommend Low Voltage Disconnect	17.6V	BMS Charge Voltage Cut-off	30V[3.75±0.1V]
BMS Discharge Voltage Cut-off	17.6V[2.2±0.08 vpc] [100±50ms]	Reconnect Voltage	29.2V[3.65±0.1V]
Reconnect Voltage	20V[2.5±0.1vpc]	Balancing Voltage	28.0V[3.5±0.025vpc]
Short Circuit Protection	200-400μs	Balancing Current	35±5mA

Temperature Specifications			Compliance Specifications
Discharge Temperature	-4 to 140℉[-20 to 60℃]	Certifications	CE[Battery], UN38.3[Battery] IEC62133[cell]
Charge Temperature	32 to 113℉[0 to 45℃]
Storage Temperature	-4 to 113℉[-20 to 45℃]
BMS High Temperature cut-off Discharge	149℉[65℃][Customized]
Reconnect Temperature	122℉[50℃][Customized]
Low Temperature Cut-off Charge	32℉[0℃][Customized]
High Temperature Cut-off Charge	129.2℉[54℃][Customized]	Shipping Classification	UN3480,CLASS9

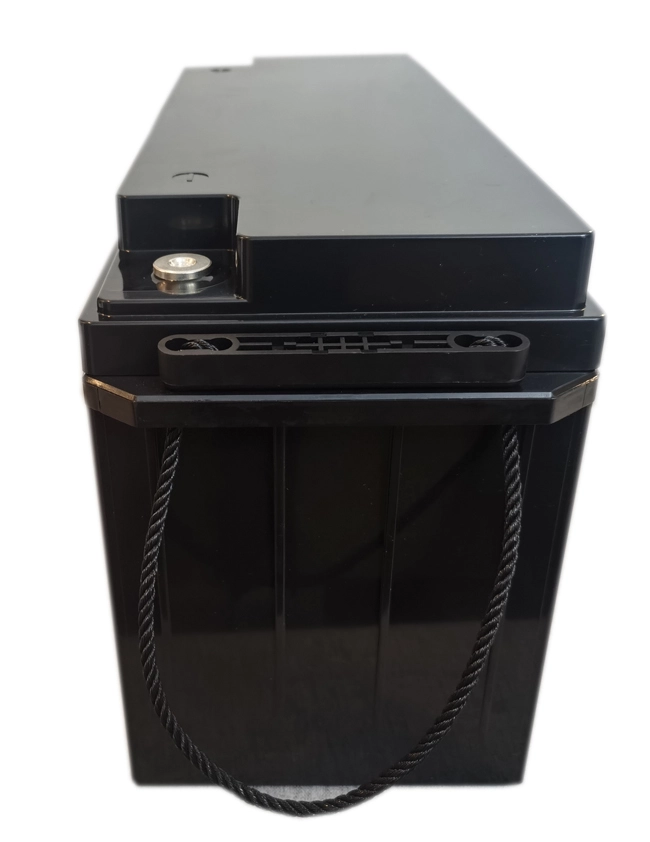

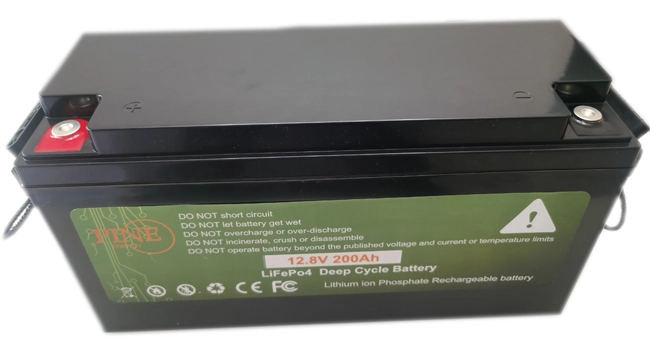

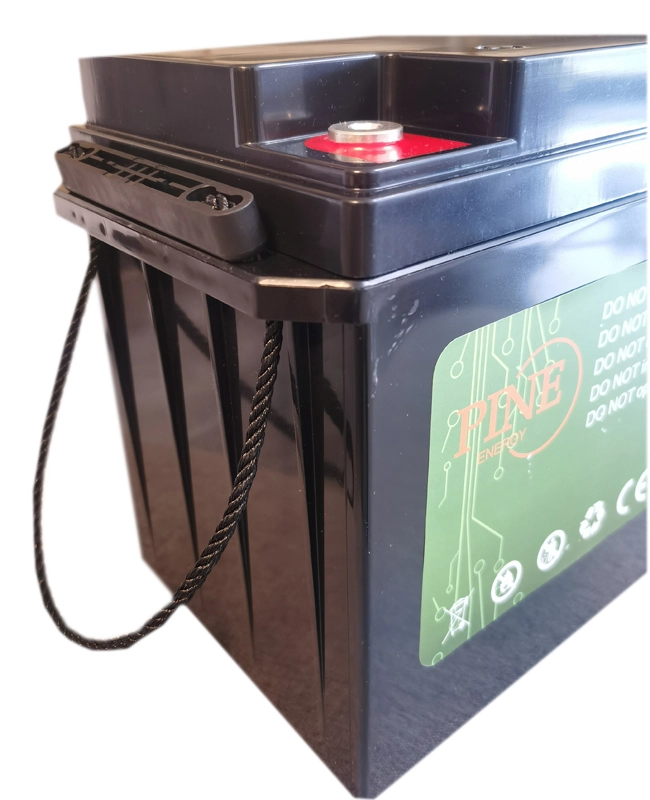

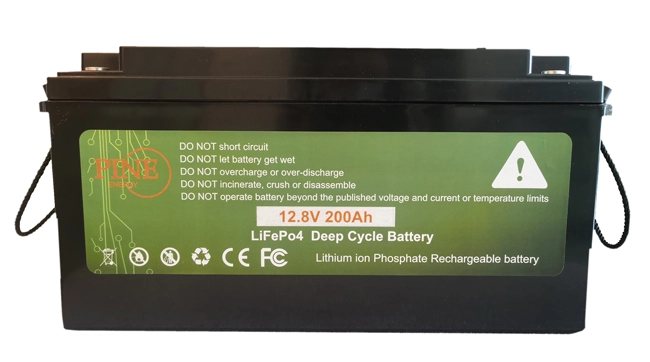

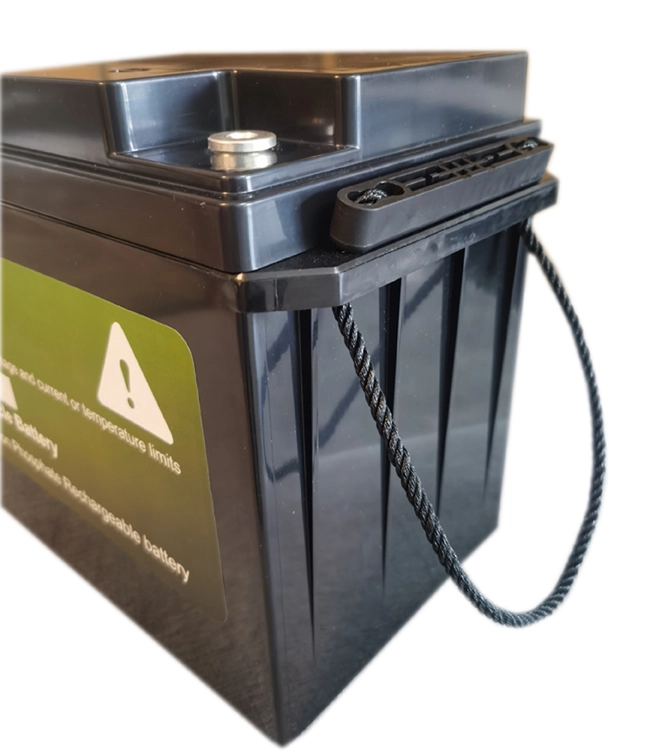

Product display & Application

Company Profile

Pine Energy(shenzhen)Co.,Ltd.

Pine Energy (shenzhen)Co., Ltd. Is a high-tech enterprise, specialized in R&D and manufacture of Lithium rechargeable battery,LiFePo4 battery and Intelligent flight battery for UAV and agriculture sprayer and so on.

With advanced hi-tech and equipment, Pine engerge has automatic production line and strictly controls raw material inspection,production procedure and finished product inspection. That's why more and more people choose Pine Energy as their partner in the world energy industry. Our Lithium battery products are widely used in UPS backup\ Telecom towers\Solar energy storage system\electric vehicles\AGV\Golf-cart\Street-cleaner\electric-motorcycle\solar street light\and electric tools etc. We own 4 automatic lines, 150 workers, all products are full inspection. OEM/ODM support. Our total production capacity is 1 million batteries per month.

Workshop

Certifications

FAQ

A): Do you accept small order quantity, how many it is? Answer: Yes, we accept small order quantity. even 1pc B): what's the advantage of Pine energy? Answer: Strong R& D ability and quality assurance C): Do you accept OEM/ODM? Answer: We can and be able to provide OEM / ODM service. D): How long is the warranty period? Answer:Thank you for your question.We offer 3 or 5 years as the warranty period depends on customer demand.

E): How long is the warranty period? Answer:Thank you for your question.We offer 3 or 5 years as the warranty period depends on customer demand.

F): What’s the factory production capacity Answer: 2MWH per day for the production capacity . Welcome to visit our factory and contact us if any further questions
