As expected,Pine Energy (Shenzhen)co., Ltd unveils a new product relying on our advanced technologies and industrious employees. It is Cheap 12.8v 150ah Wholesale High Quality Lithium Iron Lifepo4 Deep Cycle Rechargeable Battery and can be legally exported to foreign countries. Cheap 12.8v 150ah Wholesale High Quality Lithium Iron Lifepo4 Deep Cycle Rechargeable Battery can help companies stand out in a fiercely competitive environment and become the industry leader in one fell swoop. For product inquiries, technical support, and other questions, you can reach us in any way stated on our 'Contact Us' page.
Brand Name | PINE | Model Number | PN-GR-12150 |
Battery Size | 18650 | Place of Origin | China |
Warranty | 3months-1year | Anode Material | LFP |
Application | Power Tools, Home Appliances, BOATS, Golf Carts, Electric Bicycles/Scooters, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems | Product name | Lithium Battery |
Capacity @20A | 450min | Energy | 1920Wh |
Resistance | ≤30mΩ @ 50% SOC | Efficiency | 99% |
Self Discharge | ≤3.5% Per Month | Maximum Modules in series of Parallel | 4 |
Dimensions | 355*175*188mm | Weight | 14.4KG |

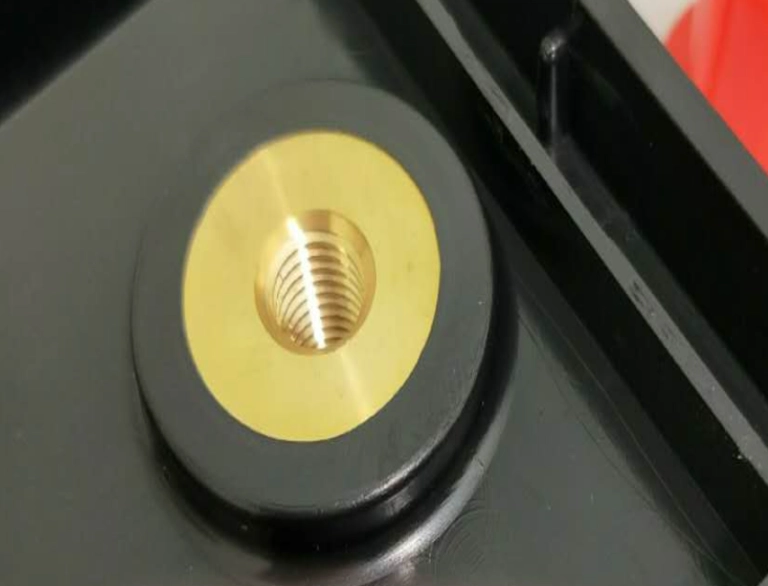

Terminal Type | M8/M6 | Chargeable | Yes |
Certification | CE[Battery], UN38.3[Battery],IEC62133[cell] |
Electrical Specification | Mechanical Specifications | ||||
Nominal Voltage | 12.8V | Dimensions | 355*175*188mm | ||
Nominal Capacity | 150Ah | Weight | 14.4KG | ||
Capacity @20A | 450min | Terminal Type | M8/M6 | ||
Energy | 1920Wh | Case Material | ABS | ||
Resistance | ≤30mΩ @ 50% SOC | Enclosure Protection | IP65 | ||
Efficiency: | 99% | Cell Type | Prismatic | ||
Self Discharge | ≤3.5% Per Month | Chemistry | LifePo4 | ||
Maximum Modules in series of Parallel: | 4 | Configuration | 4S3P |
Discharge Specifications | Charge Specifications | ||||
Maximum Continuous Discharge Current | 100A | Recommend Charge Current | 5A-50A | ||
Peak Discharge Current | 260A≤5s | Maximum Charge Current | 100A | ||
BMS Discharge Current Cut-off | 300A±50A [2.2±1ms] | Recommed Charge Voltage | 14.2-14.6V | ||
Recommend Low Voltage Disconnect | 8.8V | BMS Charge Voltage Cut-off | 15.0V[3.75±0.1V] | ||
BMS Discharge Voltage Cut-off | 8.8V[2.2±0.08 vpc] [100±50ms] | Reconnect Voltage | 14.6V[3.65±0.1V] | ||
Reconnect Voltage | 10V[2.5±0.1vpc] | Balancing Voltage | 14.0V[3.5±0.025vpc] | ||
Short Circuit Protection | 200-400μs | Balancing Current | 35±5mA |
Temperature Specifications | Compliance Specifications | ||||
Discharge Temperature | -4 to 140℉[-20 to 60℃] | Certifications | CE[Battery], UN38.3[Battery] IEC62133[cell] | ||
Charge Temperature | 32 to 113℉[0 to 45℃] | ||||
Storage Temperature | 23 to 113℉[-5 to 45℃] | ||||
BMS High Temperature cut-off Discharge | 149℉[65℃][Customized] | ||||
Reconnect Temperature | 122℉[50℃][Customized] | ||||
Low Temperature Cut-off Charge | 32℉[0℃][Customized] | ||||
High Temperature Cut-off Charge | 129.2℉[54℃][Customized] | Shipping Classification | UN3480,CLASS9 |
