Pine - 36v 50ah Custom High Quality Cheap Lifepo4 Battery Lithium Iron Phosphate Battery Ungrouped

Technology is the core productive force of our company. We have been focusing on improving and upgrading our currently-used technologies since our inception. For now, we mainly adopt to manufacture the solar inverter, lithium ion battery , DC/AC power inverter , outdoor portable station, Car jump starter.It is used in the application(s) of Lithium Ion Batteries.

SEND INQUIRY NOW

Nominal Voltage:: 38.4V

Nominal Capacity:: 50Ah

Battery Type:: Prismatic

Customization:: Customized logo (Min. Order: 50 sets) , Customized packaging (Min. Order: 100 sets) , Graphic customization (Min. Order: 200 sets)

shipping:: Ocean freight

SEND INQUIRY NOW

Products Details

The product is made by technologies, some of which are developed on our own while others are learned from other famous brands.In the fields like Lithium Ion Batteries, our product is widely used for its versatility and guaranteed quality. 36v 50ah Custom High Quality Cheap Lifepo4 Battery Lithium Iron Phosphate Battery provides not only excellent quality, but also very favorable price. At present, Pine Energy (Shenzhen)co., Ltd are still a growing enterprise with a strong ambition to become one of the most competitive enterprises in the market. We will continue to research and develop new technologies for the birth of new products. Also, we will grasp the precious tide of opening up and reform to attract customers all over the world.

Brand Name	PINE	Model Number	PN-LP-3650
Battery Size	18650	Place of Origin	China
Warranty	3months-1year	Anode Material	LFP
Application	Power Tools, Home Appliances, BOATS, Golf Carts, Electric Bicycles/Scooters, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems	Product name	Lithium Battery
Capacity @20A	120min	Energy	1920Wh
Resistance	≤30mΩ @ 50% SOC	Efficiency	99%
Self Discharge	≤3.5% Per Month	Maximum Modules in series of Parallel	1
Dimensions(LWH)	406174207mm	Weight	14.6KG
Terminal Type	M8/M6	Chargeable	Yes
Certification	CE[Battery], UN38.3[Battery],IEC62133[cell]

Products Description

Electrical Specification			Mechanical Specifications
Nominal Voltage	38.4V	Dimensions(LWH)	406174207mm
Nominal Capacity	50Ah	Weight	14.6KG
Capacity @25A	120min	Terminal Type	M8/M6
Energy	1920Wh	Case Material	ABS
Resistance	≤30mΩ @ 50% SOC	Enclosure Protection	IP65
Efficiency	99%	Cell Type	Prismatic
Self Discharge	≤3.5% Per Month	Chemistry	LifePo4
Maximum Modules in series of Parallel	1	Configuration	12S1P

Discharge Specifications			Charge Specifications
Maximum Continuous Discharge Current	50A	Recommend Charge Current	5A-25A
Peak Discharge Current	150A≤5s	Maximum Charge Current	50A
BMS Discharge Current Cut-off	200A±20A [2.2±1ms]	Recommed Charge Voltage	43.2-43.8V
Recommend Low Voltage Disconnect	26.4V	BMS Charge Voltage Cut-off	45V[3.75±0.1V]
BMS Discharge Voltage Cut-off	26.4V[2.2±0.08 vpc] [100±50ms]	Reconnect Voltage	43.8V[3.65±0.1V]
Reconnect Voltage	30V[2.5±0.1vpc]	Balancing Voltage	42.0V[3.5±0.025vpc]
Short Circuit Protection	200-400μs	Balancing Current	35±5mA

Temperature Specifications			Compliance Specifications
Discharge Temperature	-4 to 140℉[-20 to 60℃]	Certifications	CE[Battery], UN38.3[Battery] IEC62133[cell]
Charge Temperature	32 to 113℉[0 to 45℃]
Storage Temperature	-4 to 113℉[-20 to 45℃]
BMS High Temperature cut-off Discharge	149℉[65℃][Customized]
Reconnect Temperature	122℉[50℃][Customized]
Low Temperature Cut-off Charge	32℉[0℃][Customized]
High Temperature Cut-off Charge	129.2℉[54℃][Customized]	Shipping Classification	UN3480,CLASS9

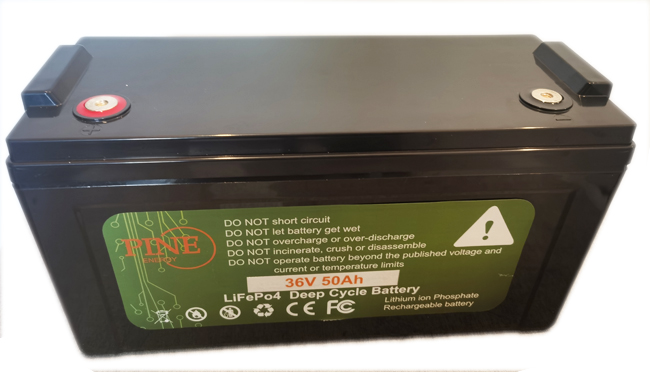

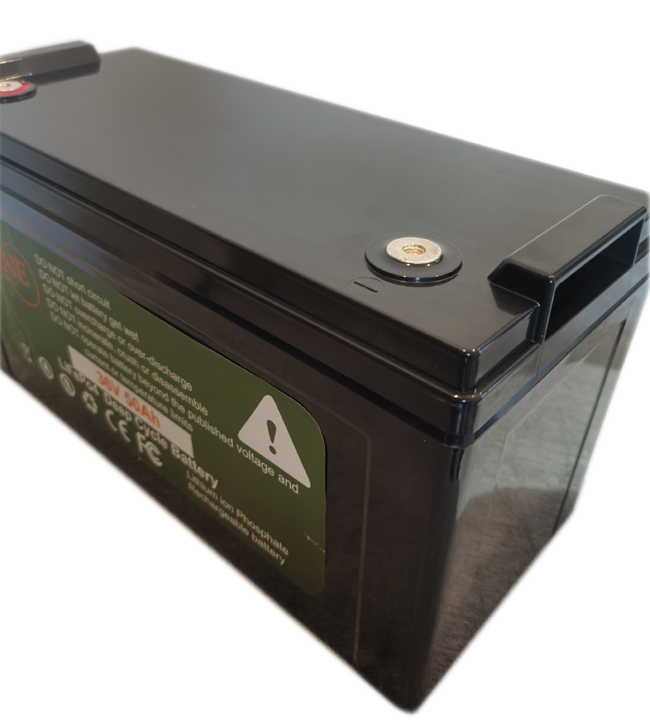

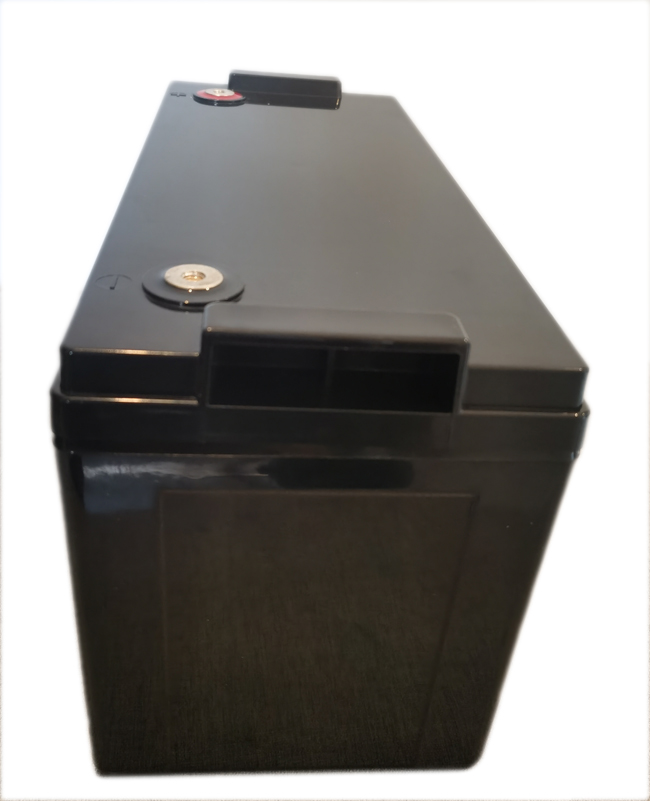

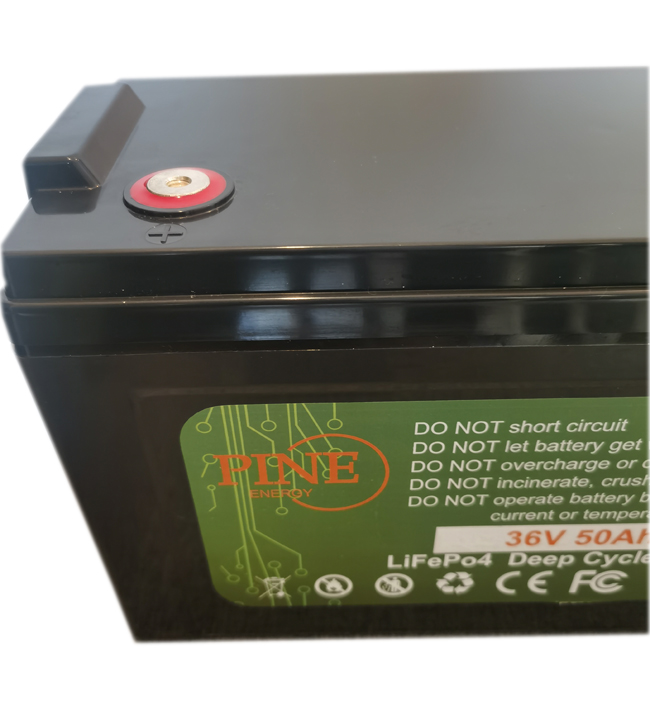

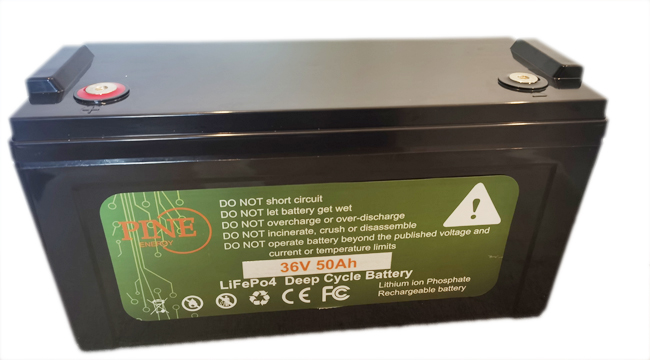

Product display & Application

Company Profile

Pine Energy(shenzhen)Co.,Ltd.

Pine Energy (shenzhen)Co., Ltd. Is a high-tech enterprise, specialized in R&D and manufacture of Lithium rechargeable battery,LiFePo4 battery and Intelligent flight battery for UAV and agriculture sprayer and so on.

With advanced hi-tech and equipment, Pine engerge has automatic production line and strictly controls raw material inspection,production procedure and finished product inspection. That's why more and more people choose Pine Energy as their partner in the world energy industry. Our Lithium battery products are widely used in UPS backup\ Telecom towers\Solar energy storage system\electric vehicles\AGV\Golf-cart\Street-cleaner\electric-motorcycle\solar street light\and electric tools etc. We own 4 automatic lines, 150 workers, all products are full inspection. OEM/ODM support. Our total production capacity is 1 million batteries per month.

Workshop

Certifications

FAQ

A): Do you accept small order quantity, how many it is? Answer: Yes, we accept small order quantity. even 1pc B): what's the advantage of Pine energy? Answer: Strong R& D ability and quality assurance C): Do you accept OEM/ODM? Answer: We can and be able to provide OEM / ODM service. D): How long is the warranty period? Answer:Thank you for your question.We offer 3 or 5 years as the warranty period depends on customer demand.

E): How long is the warranty period? Answer:Thank you for your question.We offer 3 or 5 years as the warranty period depends on customer demand.

F): What’s the factory production capacity Answer: 2MWH per day for the production capacity . Welcome to visit our factory and contact us if any further questions
