Pine - Custom 12v 300ah Lifepo4 24v 100ah Newest Design Top Quality Pine Energy Storage Solar Battery Lithium Ion Battery For Rv Ungrouped

Technology always serves as a critical tool to promote the manufacturing process. In our company, we utilize advanced technologies that have been upgraded to discover and guarantee Custom 12v 300ah Lifepo4 24v 100ah Newest Design Top Quality Pine Energy Storage Solar Battery Lithium Ion Battery For Rv performance.When applied to the field(s) of Lithium Ion Batteries, the product can give out its best effect.

SEND INQUIRY NOW

Nominal Voltage:: 12.8V

Nominal Capacity:: 300Ah

Battery Type:: Prismatic

Customization:: Customized logo (Min. Order: 50 sets) , Customized packaging (Min. Order: 100 sets) , Graphic customization (Min. Order: 200 sets)

shipping:: Ocean freight

SEND INQUIRY NOW

Products Details

Since its establishment, Pine Energy (Shenzhen)co., Ltd has always strengthened exchanges and cooperation with outstanding domestic and foreign companies. The key to Custom 12v 300ah Lifepo4 24v 100ah Newest Design Top Quality Pine Energy Storage Solar Battery Lithium Ion Battery For Rv competitiveness is innovation. For product inquiries, technical support, and other questions, you can reach us in any way stated on our 'Contact Us' page.

Brand Name	PINE	Model Number	PN-LP-12300
Battery Size	18650	Place of Origin	China
Warranty	3months-1year	Anode Material	LFP
Application	Power Tools, Home Appliances, BOATS, Golf Carts, Electric Bicycles/Scooters, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems	Product name	Lithium Battery
Capacity @20A	900min	Energy	3840Wh
Resistance	≤30mΩ @ 50% SOC	Efficiency	99%
Self Discharge	≤3.5% Per Month	Maximum Modules in series of Parallel	4
Dimensions(LWH)	520268220mm	Weight	28KG
Terminal Type	M8	Chargeable	Yes
Certification	CE[Battery], UN38.3[Battery],IEC62133[cell]

Products Description

Electrical Specification			Mechanical Specifications
Nominal Voltage	12.8V	Dimensions	520268220mm
Nominal Capacity	300Ah	Weight	28KG
Capacity @20A	900min	Terminal Type	M8
Energy	3840Wh	Case Material	ABS
Resistance	≤30mΩ @ 50% SOC	Enclosure Protection	IP55
Efficiency	99%	Cell Type	Prismatic
Self Discharge	≤3.5% Per Month	Chemistry	LifePo4
Maximum Modules in series of Parallel	4	Configuration	4S3P

Discharge Specifications			Charge Specifications
Maximum Continuous Discharge Current	100A	Recommend Charge Current	5A-50A
Peak Discharge Current	260A≤5s	Maximum Charge Current	100A
BMS Discharge Current Cut-off	300A±50A [2.2±1ms]	Recommed Charge Voltage	14.2-14.6V
Recommend Low Voltage Disconnect	8.8V	BMS Charge Voltage Cut-off	15.0V[3.75±0.1V]
BMS Discharge Voltage Cut-off	8.8V[2.2±0.08 vpc] [100±50ms]	Reconnect Voltage	14.6V[3.65±0.1V]
Reconnect Voltage	10V[2.5±0.1vpc]	Balancing Voltage	14.0V[3.5±0.025vpc]
Short Circuit Protection	200-400μs	Balancing Current	35±5mA

Temperature Specifications			Compliance Specifications
Discharge Temperature	-4 to 140℉[-20 to 60℃]	Certifications	CE[Battery], UN38.3[Battery] IEC62133[cell]
Charge Temperature	32 to 113℉[0 to 45℃]
Storage Temperature	23 to 95℉[-5 to 35℃]
BMS High Temperature cut-off Discharge	149℉[65℃][Customized]
Reconnect Temperature	122℉[50℃][Customized]
Low Temperature Cut-off Charge	32℉[0℃][Customized]
High Temperature Cut-off Charge	129.2℉[54℃][Customized]	Shipping Classification	UN3480,CLASS9

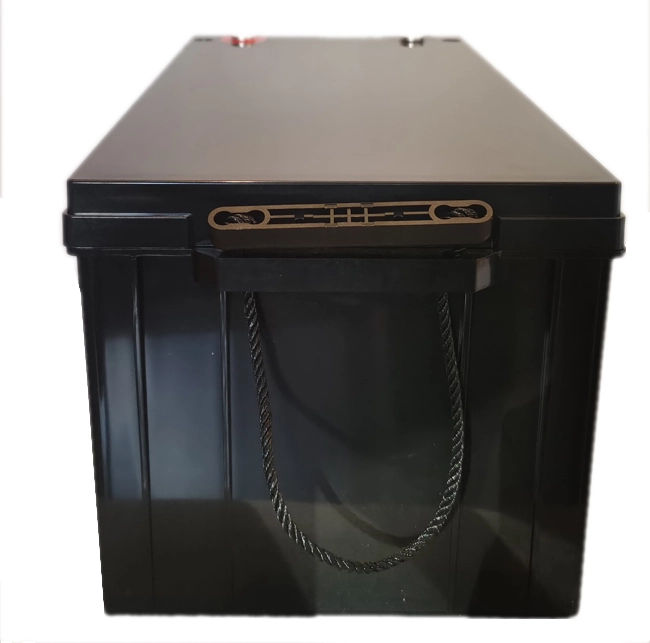

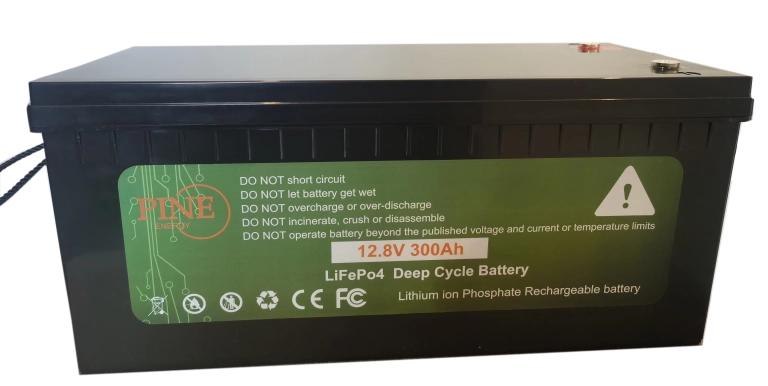

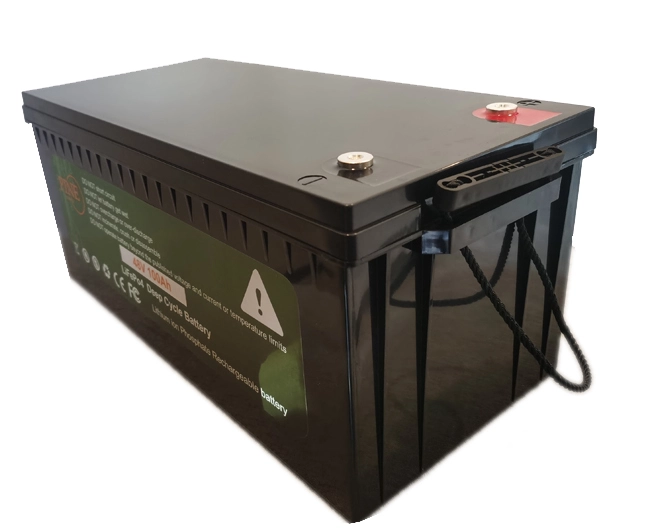

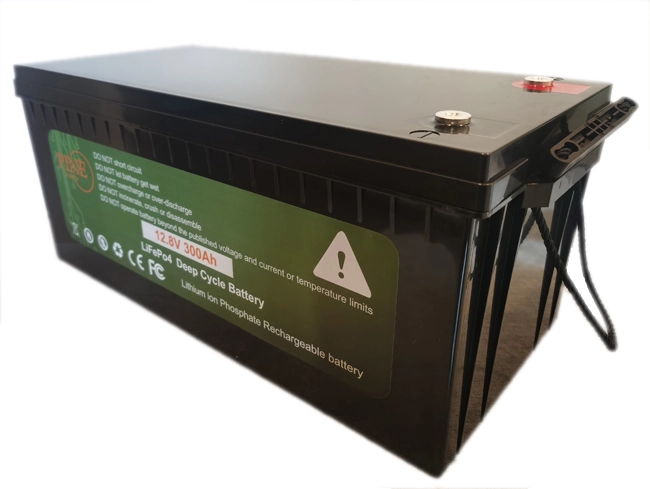

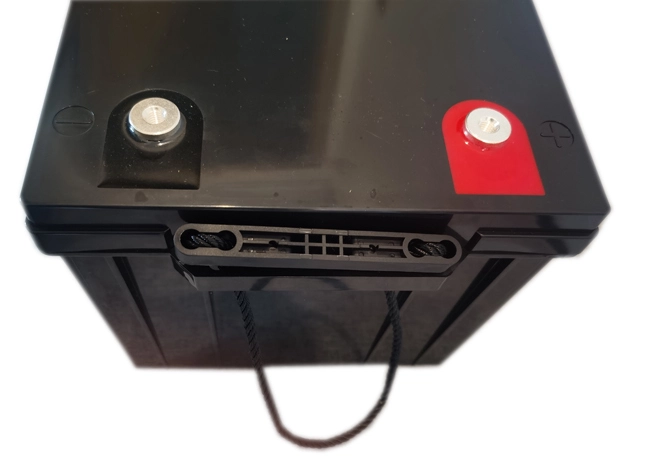

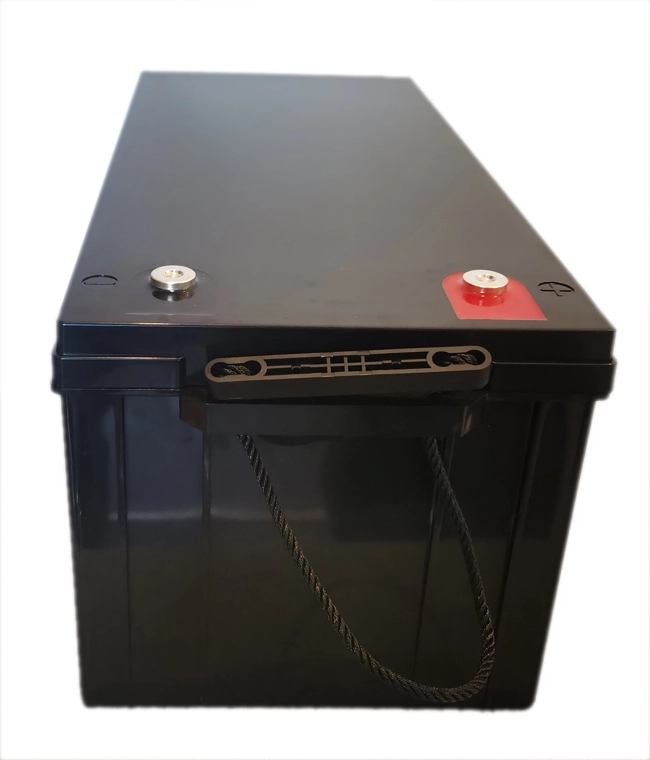

Product display & Application

Company Profile

Pine Energy(shenzhen)Co.,Ltd.

Pine Energy (shenzhen)Co., Ltd. Is a high-tech enterprise, specialized in R&D and manufacture of Lithium rechargeable battery,LiFePo4 battery and Intelligent flight battery for UAV and agriculture sprayer and so on.

With advanced hi-tech and equipment, Pine engerge has automatic production line and strictly controls raw material inspection,production procedure and finished product inspection. That's why more and more people choose Pine Energy as their partner in the world energy industry. Our Lithium battery products are widely used in UPS backup\ Telecom towers\Solar energy storage system\electric vehicles\AGV\Golf-cart\Street-cleaner\electric-motorcycle\solar street light\and electric tools etc. We own 4 automatic lines, 150 workers, all products are full inspection. OEM/ODM support. Our total production capacity is 1 million batteries per month.

Workshop

Certifications

FAQ

A): Do you accept small order quantity, how many it is? Answer: Yes, we accept small order quantity. even 1pc B): what's the advantage of Pine energy? Answer: Strong R& D ability and quality assurance C): Do you accept OEM/ODM? Answer: We can and be able to provide OEM / ODM service. D): How long is the warranty period? Answer:Thank you for your question.We offer 3 or 5 years as the warranty period depends on customer demand.

E): How long is the warranty period? Answer:Thank you for your question.We offer 3 or 5 years as the warranty period depends on customer demand.

F): What’s the factory production capacity Answer: 2MWH per day for the production capacity . Welcome to visit our factory and contact us if any further questions
