Pine is a professional solar product supplier, lithium ion battery manufacturer and solar energy system factory in China.
Language
Pine is a professional solar product supplier, lithium ion battery manufacturer and solar energy system factory in China.
Pine Energy (Shenzhen)co., Ltd has been one of the market leaders due to providing high-quality products to clients and it is very possible for the company to achieve a greater advancement in the future. We manufacture it in a variety of color and styles. Pine Energy (Shenzhen)co., Ltd always adhere to the principle of 'creating values for customers and bringing benefits to stakeholders'. In the process of development, we highly focus on the quality and ensure no flawless product delivered to customers.

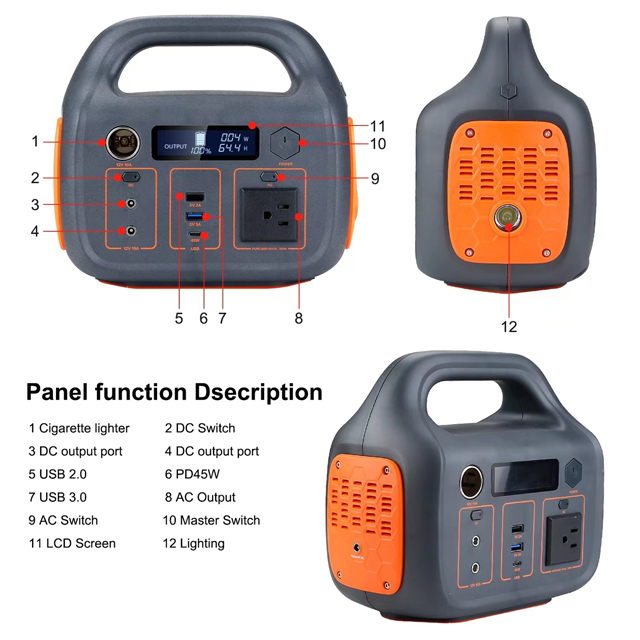

| Output Interface | DC, USB/DC, Cigarette lighter | Input Interface | usb, DC, AC |
| Function | Solar Panel Charge, LED Display | Type | Wireless Charger, PORTABLE, Power Staion, LED Display, for outdoor |
| Battery Type | 18650 Lithium Battery | Place of Origin | China |
| Brand Name | PINE | Model Number | PN-AS-1000W |
| Weight | 6KG | Socket Standard | Universal |
| Protection | Over-discharging, Short Circuit Protection, Over-charging, Low Tension | Output Power | 1000W |
| Product name | portable power Station | Energy | 1024Wh |
| Efficiency | >89% | Chemistry | Li(NiCoMn)O2 |
| Capacity @5A | 240min | Configuration | 4S9P |
Electrical Specification | Mechanical Specifications | ||||
Nominal Voltage: | 14.8V | Dimensions(L*W*H): | 205*105*170( mm ) | ||
Nominal Capacity | 22.95Ah | Weight: | 7KG | ||
Capacity @5A | 240min | Terminal Type: | AC/DC/USB/USB-C/Cigarret Lighter | ||
Energy | 1024Wh | Case Material: | ABS | ||
Resistance | ≤40mΩ @ 50% SOC | Enclosure Protection: | IP55 | ||
Efficiency: | >89% | Cell Type: | NCM | ||
Self Discharge | ≤3.5% Per Month | Chemistry: | Li(NiCoMn)O2 | ||
Configuration: | 4S9P | ||||
AC OUT PUT | USB OUT PUT | ||||
Out Put Voltage | 105V-240V (Customized) | USB 1 | QC2.0 5V /12W(Max) | ||
Out Put Frequency | 50-60Hz (Customized) | USB 2 | QC3.0 5v/18W | ||
Out Put Wave | Pure Sine Wave | USB-C2 | PD3.0 5~20V/ 45W(Max) | ||
Effeiciency | >90% at 70% Load | ||||
Out Put Power | AC 300W, Approx 60 Minutes | DC OUT PUT | |||
AC 150W, Approx 120 Minutes | DC 5.5 Port | DC 12V/10A | |||
AC 100W, Approx 180 Minutes | Cigaretter Lighter Port | DC 12V/120W Max | |||
AC 50W, Approx 360 Minutes | Efficency | >93% at 70% Load | |||
Temperature Specifications | Charge | ||||
Discharge Temperature | -20 to 60℃ | Adapter 16.8V3.85A | 6 Hours | ||
Charge Temperature | -5 to 45℃ | Car 12-24V 5A | 5 Hours | ||
Storage Temperature | -20 to 60℃ | Solar 23V 5A | 4 Hours | ||
BMS High Temperature cut-off Discharge | 149℉[65℃][Customized] | LED LIGHTING | |||
Reconnect Temperature | 122℉[50℃][Customized] | Low Bright | 3W (Min) | ||
Low Temperature Cut-off Charge | [-5℃][Customized] | Hight Bright | 5W (Max) | ||
High Temperature Cut-off Charge | 129.2℉[54℃][Customized] | SOS | 1W | ||
