In Pine Energy (Shenzhen)co., Ltd, our creative employees including R&D experts and technicians largely contribute to the successful development of Portable Power Station Emergency Home Portable Solar Power Station Lifepo4 Battery Portable Power. We expect great profitability from the product release can benefit all customers. Technology is the core competitiveness of a company. Since established, we have been researching and developing high-level technologies to make sure highly efficient manufacturing process.It covers a wide range and is commonly seen in the application field(s) of Power Banks & Power Station. Looking to the future, Portable Power Station Emergency Home Portable Solar Power Station Lifepo4 Battery Portable Power will continue to follow the route of independent innovation, and continue to introduce high-tech talents as intellectual support, and strive to achieve the goal of becoming a world-class enterprise.
| Output Interface | DC, USB/DC, Cigarette lighter | Input Interface | usb, DC, AC |
| Function | Solar Panel Charge, LED Display | Type | Wireless Charger, PORTABLE, Power Staion, LED Display, for outdoor |
| Battery Type | 18650 Lithium Battery | Place of Origin | China |
| Brand Name | PINE | Model Number | PN-AS-1000W |
| Weight | 6KG | Socket Standard | Universal |
| Protection | Over-discharging, Short Circuit Protection, Over-charging, Low Tension | Output Power | 1000W |
| Product name | portable power Station | Energy | 1024Wh |
| Efficiency | >89% | Chemistry | Li(NiCoMn)O2 |
| Capacity @5A | 240min | Configuration | 4S9P |
Electrical Specification | Mechanical Specifications | ||||

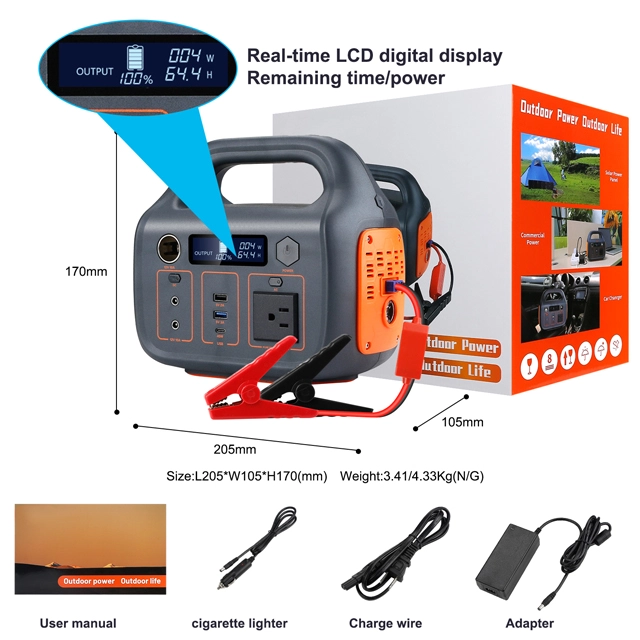

Nominal Voltage: | 14.8V | Dimensions(L*W*H): | 205*105*170( mm ) | ||
Nominal Capacity | 22.95Ah | Weight: | 7KG | ||
Capacity @5A | 240min | Terminal Type: | AC/DC/USB/USB-C/Cigarret Lighter | ||
Energy | 1024Wh | Case Material: | ABS | ||
Resistance | ≤40mΩ @ 50% SOC | Enclosure Protection: | IP55 | ||
Efficiency: | >89% | Cell Type: | NCM | ||
Self Discharge | ≤3.5% Per Month | Chemistry: | Li(NiCoMn)O2 | ||
Configuration: | 4S9P | ||||
AC OUT PUT | USB OUT PUT | ||||
Out Put Voltage | 105V-240V (Customized) | USB 1 | QC2.0 5V /12W(Max) | ||
Out Put Frequency | 50-60Hz (Customized) | USB 2 | QC3.0 5v/18W | ||
Out Put Wave | Pure Sine Wave | USB-C2 | PD3.0 5~20V/ 45W(Max) | ||
Effeiciency | >90% at 70% Load | ||||
Out Put Power | AC 300W, Approx 60 Minutes | DC OUT PUT | |||
AC 150W, Approx 120 Minutes | DC 5.5 Port | DC 12V/10A | |||
AC 100W, Approx 180 Minutes | Cigaretter Lighter Port | DC 12V/120W Max | |||
AC 50W, Approx 360 Minutes | Efficency | >93% at 70% Load | |||

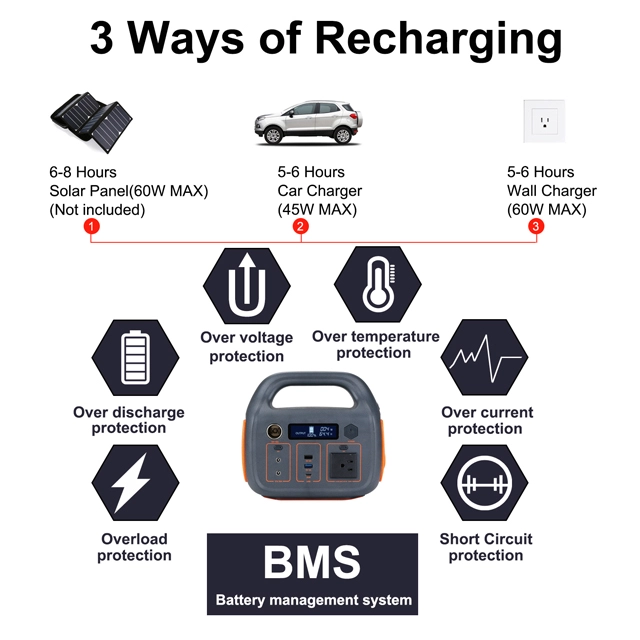

Temperature Specifications | Charge | ||||
Discharge Temperature | -20 to 60℃ | Adapter 16.8V3.85A | 6 Hours | ||
Charge Temperature | -5 to 45℃ | Car 12-24V 5A | 5 Hours | ||
Storage Temperature | -20 to 60℃ | Solar 23V 5A | 4 Hours | ||
BMS High Temperature cut-off Discharge | 149℉[65℃][Customized] | LED LIGHTING | |||
Reconnect Temperature | 122℉[50℃][Customized] | Low Bright | 3W (Min) | ||
Low Temperature Cut-off Charge | [-5℃][Customized] | Hight Bright | 5W (Max) | ||
High Temperature Cut-off Charge | 129.2℉[54℃][Customized] | SOS | 1W | ||
